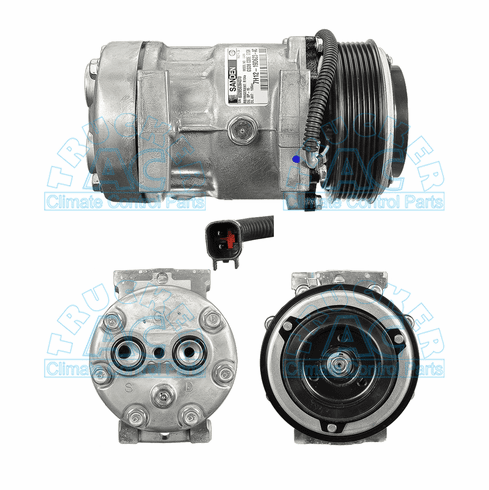

Sanden 4399 Multi Fit Applications
Specifications
Manufacturer #: 4399
Application: Multi Fit Applications
Description: SANDEN SPRHD COMP 7GR 12V
Additional Description: Super HD style
Volts: 12V
Clutch Diameter: 119mm
No. of Grooves: 7 groove
Belt Type: Serpentine
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 135cc Oil
Fitting Port Position: Horizontal
Fitting Style: Rear Universal O-ring FLX-7 Pad
Head Type: GV
Wire Type: 2 Wire Ford X3RT-14A624-CA W/ Jumper to Yazaki AFL E-3385
Replacement Clutch Assy.: NSS
Replacement Head Assy: 03-6554
Model: SD7H15-Super HD
Mounting Type: Direct Short
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
O-Ring #1: 16-4224
O-Ring #2: 16-4224
Shaft Type: Long Key Shaft
Diode Protection: Diode/Thermal Fuse
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
INTERCHANGE: 4399 7H12-19D623AC 7H1219D623AC 54399
