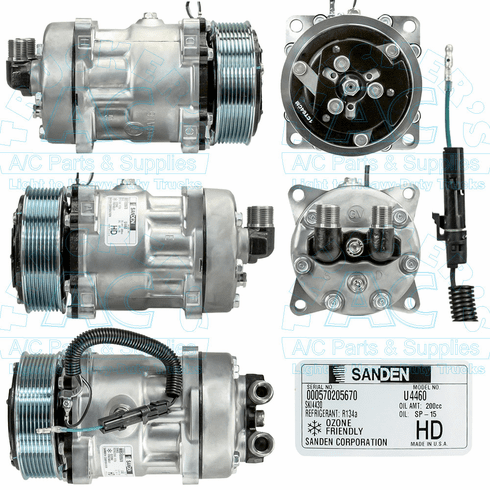

SANDEN 4453 Multi Fit Applications 22-59342-000 75R-81382
Make: Sanden
Manufacturer #: 4453
Application: Multi Fit Applications
Description: Sanden Compressor
Volts: 12V
Clutch Diameter: 119mm
No. of Grooves: 8 groove
Belt Type: Serpentine
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 200cc Oil
Fitting Port Position: Horizontal
Fitting Style: Rear Universal O-ring FLX-7 Pad
Head Type: GV with Vertical Tube-O manifold
Wire Type: 1 Wire Male Packard #12015791 W/ Diode & Bullet Jumper
Replacement Clutch Assy.: 02-0601 see note
Replacement Head Assy: 03-6534A
Model: SD7H15
Mounting Type: Ear 8 Long
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
Shaft Type: Long Key Shaft
Diode Protection: w/diode
Truck Air Oring 1: 16-4210
Truck Air Seal 1: 16-4210
INTERCHANGE: AIRSOURCE 54453; ALLIANCE N83-304833; FREIGHTLINER 22-59342-000; SANDEN 4453
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
