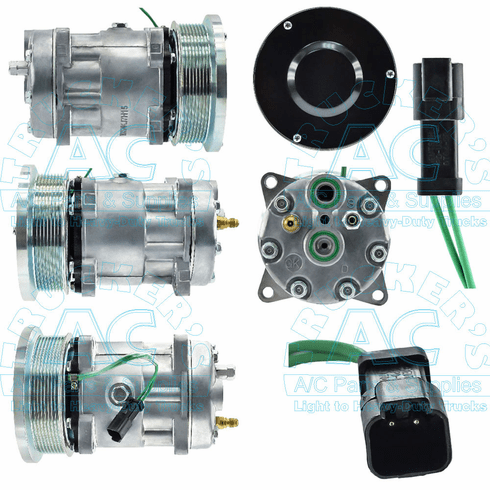

Sanden Style A/C Compressor - Aftermarket - Farm & Offroad
Make: Sanden Style
Application: Farm & Off Road Applications
Description: SD7H15 COMPRESSOR/CAT.
Additional Description: Sealed HD style
Volts: 12V
Clutch Diameter: 132mm
No. of Grooves: 8 groove
Belt Type: Serpentine
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 300cc Oil
Fitting Port Position: Horizontal
Fitting Style: Rear Horizontal Pad O-ring
Head Type: GK
Wire Type: 2 Wire Deutsch #DT04-2P-E (005, EP04, EP05)
Replacement Clutch Assy.: NSS
Model: SD7H15-SHD
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
Shaft Type: Long Key Shaft
Diode Protection: None
Truck Air Oring 1: 16-4224
Truck Air Seal 1: 16-4224
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
INTERCHANGE: AIRSOURCE #54737G, CATERPILLAR #151-5270, SANDEN #4737
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
