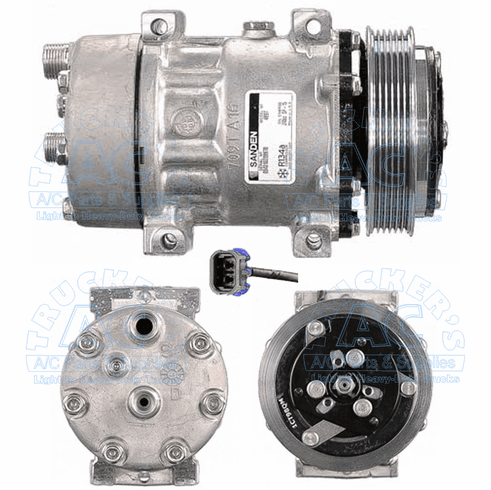

Sanden Compressor # 4897 RIGMASTER OEM# RP7-132K
RIGMASTER, Aux. Power Unit, w/ 6gr. 125mm 12V, Dir Mount, KCA Head (SD4897), OEM# RP7-132K
Specifications
Manufacturer #: 4897
Application: Multi Fit Applications
Description: SD7H15 DIR.MT W/6GR H.OR
Volts: 12V
Clutch Diameter: 125mm
No. of Grooves: 6 groove
Belt Type: Serpentine
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 300cc Oil
Fitting Port Position: Horizontal
Fitting Style: Male Insert O-Ring #8 & #10
Head Type: KCA
Wire Type: 2 Wire Female Packard #15300002
Replacement Clutch Assy.: 02-0606
Replacement Head Assy: 03-6556
Model: SD7H15HD
Mounting Type: Direct Long
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
O-Ring #1: 16-4208
O-Ring #2: 16-4210
Shaft Type: Long Key Shaft
Diode Protection: w/diode
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
INTERCHANGE: 4897
