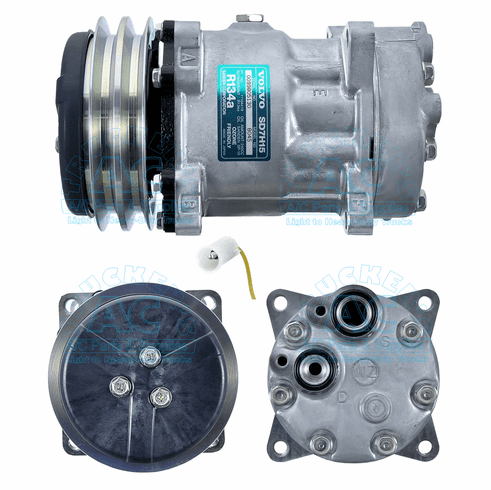

Sanden 8045 Off Road Volvo OEM# 11104419
SANDEN 8045 OFF ROAD VOLVO OEM# 11104419
Manufacturer #: 8045
Application: Farm & Off Road Applications
Description: SD7H15 COMP/VOLVO 24V OFF-RD
Volts: 24V
Clutch Diameter: 132mm
No. of Grooves: 2 groove
Belt Type: Two 1/2'' Belts
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 240cc Oil
Fitting Port Position: Horizontal
Fitting Style: Rear Pad O-ring, Volvo Off-Set Top Left, Suc over Dis
Head Type: WZ
Wire Type: 1 Wire Bullet Volvo 1308436
Replacement Clutch Assy.: NSS
Replacement Head Assy: NSS
Model: SD7H15HD
Mounting Type: Ear 8 Long
OEM Number: 11104419
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
O-Ring #1: 0124
O-Ring #2: 0129
Shaft Type: Long Key Shaft
Diode Protection: None
INTERCHANGE: 8045, 11104419, 58045
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, bus, RV and van AC parts.
