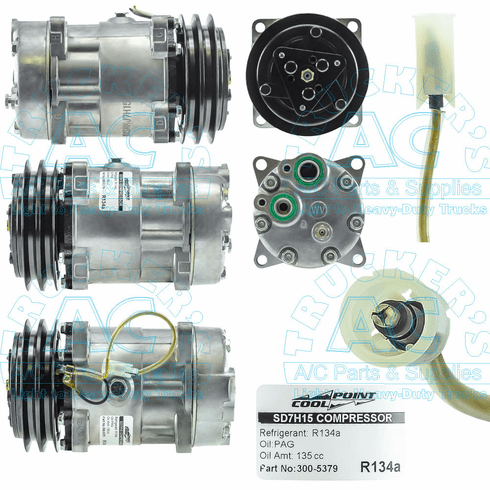

Sanden Style A/C Compressor - Aftermarket - Farm & Offroad OEM#11104419
OEM Number: 11104419
Make: Sanden Style
Manufacturer #: 8045
Application: Farm & Off Road Applications
Description: SD7H15 COMP/VOLVO 24V OFF-RD
Volts: 24V
Clutch Diameter: 132mm
No. of Grooves: 2 groove
Belt Type: Two 1/2'' Belts
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 240cc Oil
Fitting Port Position: Horizontal
Fitting Style: Rear Pad O-ring, Volvo Off-Set Top Left, Suc over Dis
Head Type: WZ
Wire Type: 1 Wire Bullet Volvo 1308436
Replacement Clutch Assy.: NSS
Replacement Head Assy: NSS
Model: SD7H15HD
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
Shaft Type: Long Key Shaft
Diode Protection: None
Truck Air Oring 1: 16-4270
Truck Air Oring 2: 16-4269
Truck Air Seal 1: 16-4270
Truck Air Seal 2: 16-4269
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
INTERCHANGE: AIRSOURCE #58045G, SANDEN #8045 VOLVO OFFROAD # 11104419
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
