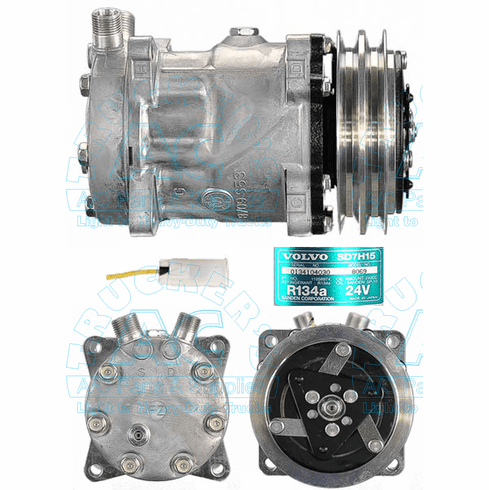

Sanden Compressor # 8069 VOLVO OEM# 11007309

Sanden Compressor # 8069 VOLVO OEM# 11007309

Item# 03-3514
Availability: Usually ships the same business day.

CONSTRUCTION EQUIPMENT, VOLVO, All w/2 gr. 132mm 24V, Ear Mnt, FZ Head, R134a (8069), OEM# 11007309


Manufacturer #: 8069

Application: Farm & Off Road Applications


Volts: 24V

Clutch Diameter: 132mm

No. of Grooves: 2 groove

Belt Type: Two 1/2'' Belts

No. Comp. Cylinders: 7 cyl

Comp. Displacement (ci): 9.5

Factory Oil Charge: 240cc Oil

Fitting Port Position: Vertical

Fitting Style: Male Insert O-Ring #8 & #10

Head Type: FZ

Wire Type: 1 Wire Bullet Volvo 1308436

Replacement Clutch Assy.: NSS

Replacement Head Assy: NSS

Model: SD7H15HD

Mounting Type: Ear 8 Long

OEM Number: 11007309, 11007314, 11007315

Oil Type: PAG100

Product Name: Compressor

Refrigerant Type: R134a

Rotation: CW

O-Ring #1: 16-4208

O-Ring #2: 16-4210

Shaft Type: Long Key Shaft

Diode Protection: None

All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty

We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.

INTERCHANGE: 8069 11007309 11007314 11007315 11058974
