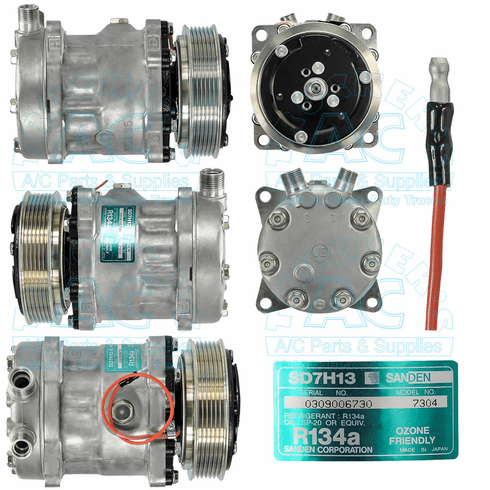

Sanden Compressor - Genuine Manufacturer #: 4455
Make: Sanden
Manufacturer #: 4455
Application: Multi Fit Applications
Description: SANDEN SD7H13 COMP/APU UNIT
Volts: 12V
Clutch Diameter: 119mm
No. of Grooves: 6 groove
Belt Type: Serpentine
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 7.9 cu.in.
Factory Oil Charge: 135cc Oil
Fitting Port Position: Vertical
Fitting Style: Male Insert O-Ring #8 & #10
Head Type: JE
Wire Type: 1 Wire Male Bullet
Replacement Clutch Assy.: 02-3466
Replacement Head Assy: NSS
Model: SD7H13
Mounting Type: Ear 8 Mid
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
Shaft Type: Long Key Shaft
Diode Protection: None
Truck Air Oring 1: 16-4208
Truck Air Oring 2: 16-4210
Truck Air Seal 1: 16-4208
Truck Air Seal 2: 16-4210
INTERCHANGE: AIRSOURCE 54455; SANDEN 4455, 7304
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
