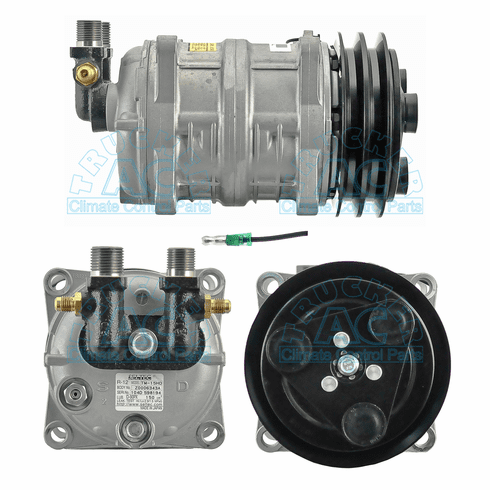

New Seltec/Veleo Compressor Freightliner 488-25011
NEW Seltec / Valeo AC compressor for the following:
Freightliner Alll w/2 gr., 5-1/4" w/ports, (R12), 488-25011
International (Navistar) All w/2 gr. 5-1/4" w/ports, (R12), 488-25011, 169725-C92
Kenworth TM15 All w/2 gr. 132mm, 5-1/4" w/ports, (R12), 488-25011
Mack All w/2 gr. 5-1/4" w/ports, (R12), 488-25011
Peterbilt All w/2 gr. 5-1/4" w/ports, (R12), 18-03006
Volvo GM TM15, TM16, 2 gr. 132mm, 5-1/4" w/ports, (R12), 488-25011
Western Star TM15, TM16, 2 gr. 132mm, 5-1/4" w/ports, (R12), 488-25011
Specifications
Manufacturer #: 488-25011
Application: Multi Fit Applications
Description: A/C Compressor, R12
Volts: 12V
Clutch Diameter: 132mm
No. of Grooves: 2 groove
Belt Type: Two 1/2'' Belts
No. Comp. Cylinders: 6 cyl
Comp. Displacement (ci): 9.0 cu.in.
Factory Oil Charge: 150cc Oil
Fitting Port Position: Vertical
Fitting Style: Pad w/A-style #8-#10 O-ring manifold
Head Type: A
Wire Type: 1 Wire bullet
Replacement Clutch Assy.: 02-3034
Replacement Head Assy: 03-6536F
Model: TM15
Mounting Type: Ear mount
Oil Type: Mineral
Product Name: Compressor
Refrigerant Type: R12
Rotation: CW/CCW
O-Ring #1: 16-4208
O-Ring #2: 16-4210
Shaft Type: Splined shaft
Diode Protection: None
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
IINTERCHANGE: 5811 N83-304019 N83-304089 501-271A N83304019 N83304089 501271A LF1005 ZGG705003 22-25921-002 22-25921-003 2225921002 2225921003 2521121 1403001 1691725-C92 18-03006 K318-36-03 75R-8512 RD5-5876-0 488-22011 488-22011B 488-22012 488-22027 488-23011 488-23011B 488-23012 488-23027 488-25011 3918277 1691725C92 1803006 K3183603 75R8512 RD55876-0 48822011 48822011B 48822012 48822027 48823011 48823011B 48823012 48823027 48825011 AC501-271A AC501271A
