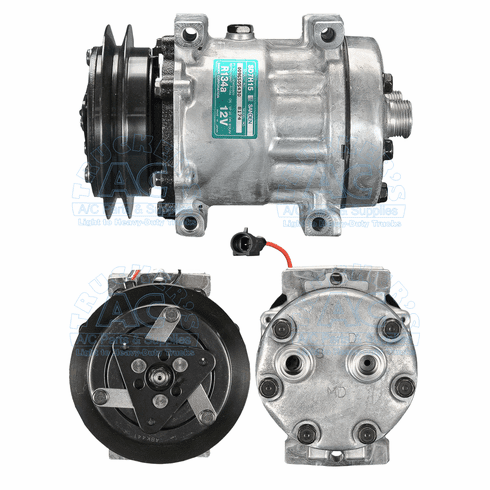

SANDEN 8174 Multi Fit Ford/New Holland OEM# SD8174
Specifications
Manufacturer #: 8174
Application: Multi Fit Applications
Description: REDUCED #12 FERRULE
Volts: 12V
Clutch Diameter: 158mm
No. of Grooves: 1 groove
Belt Type: Variable groove
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 200cc Oil
Fitting Port Position: Horizontal
Fitting Style: Tube-O 1 x 14
Head Type: MD
Wire Type: 1 Wire Female AMP #282019-1
Replacement Clutch Assy.: NSS
Replacement Head Assy: 03-6534
Model: SD7H13
Mounting Type: Direct Short
OEM Number: 87430122
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
O-Ring #1: 16-4210
O-Ring #2: 16-4210
Shaft Type: Long Key Shaft
Diode Protection: None
Notes: Dimensional Weight Shipping Charges Apply. DUE TO THE OVERALL DIMENSIONS OF THE SHIPPING CARTON REQUIRED FOR THIS PART, UPS WILL CALCULATE SHIPPING CHARGES BY THE DIMENSIONAL WEIGHT INDICATED THE CALCULATED CHARGE WILL BE GREATER THAN THE ACTUAL WEIGHT OF THE BOX, AND DOES NOT INCLUDE ADDITIONAL SURCHARGES FOR FUEL OR REMOTE DELIVERY AREAS.
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, bus, RV and van AC parts.
INTERCHANGE: 58174 8174 87430122
