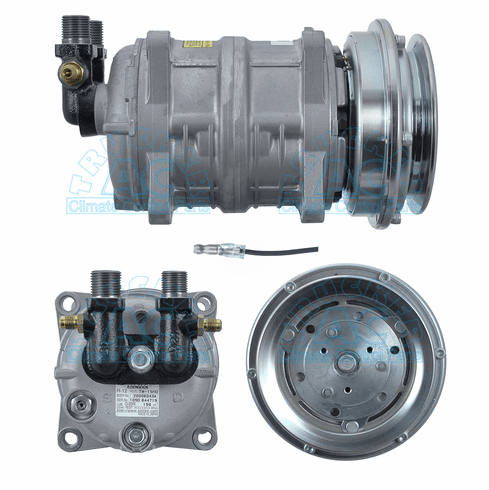

Seltec Compressor OEM# 488-25063
Zoom

Seltec Compressor OEM# 488-25063

Item# 03-3545F
$245.25
Availability: Usually ships the same business day.

Freightliner, All Models, TM15 - TM16, w/1 gr. 4.9" OH w/ports (R12), OEM# 488-25063

International (Navistar), All w/1 gr. 4.9" w/ports (R12), 488-25063, OEM# 169724-C92

Kenworth, All, TM15, w/1 gr. 125mm 4.9" Dia w/ports (R12), OEM# 488-23063

Mack, All Models, w/1 gr. 4.9" w/ports (R12), OEM#, 488-23063

Peterbilt, All Models, w/1 gr. 4.9" w/ports (R12), OEM# 18-02802

Volvo GM, 1 gr. 125mm 4.9" w/ports (R12), OEM# 488-25063

Specifications

Manufacturer #: 488-25033

Application: Multi Fit Applications

Description: A/C Compressor, R12

Additional Description: Overhang type

Volts: 12V

Clutch Diameter: 4.9''

No. of Grooves: 1 groove

Belt Type: 1/2'' Belt

No. Comp. Cylinders: 6 cyl

Comp. Displacement (ci): 9.0 cu.in.

Factory Oil Charge: 150cc Oil

Fitting Port Position: Vertical

Fitting Style: Pad w/A-style #8-#10 O-ring manifold

Head Type: A

Wire Type: 1 Wire bullet

Replacement Clutch Assy.: 02-3039

Replacement Head Assy: 03-6536F

Model: TM15

Mounting Type: Ear mount

Oil Type: Mineral

Product Name: Compressor

Refrigerant Type: R12

Rotation: CW/CCW

O-Ring #1: 16-4208

O-Ring #2: 16-4210

Shaft Type: Splined shaft

Diode Protection: None

All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty

We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.

INTERCHANGE: 5863 N83-304029 N83304029 2521129 1403010 1691724-C92 18-02802 K318-36-02 75R-8502 RD5-5875-0 RD5-5875-0P RD5-8944-0 488-22033 488-22063 488-23033 488-23063 488-23081 488-25033 488-25063 1691724C92 1802802 K3183602 75R8502 RD55875-0 RD55875-0P RD58944-0 48822033 48822063 48823033 48823063 48823081 48825033 48825063 512048 512049 3918276 85100523
