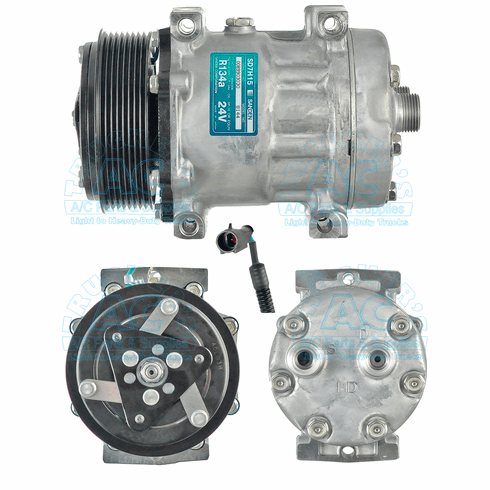

SANDEN 8090 Off Road Applications - REPLACED BY 03-3833
This item has been replaced by 03-3833!
Click here for the Replacement Part
DESCRIPTION:
Make: Sanden
Manufacturer: Sanden
Manufacturer #: 8090
Application: Farm & Off Road Applications
Description: SD7H15 COMP 119mm 8GR 24V
Volts: 24V
Clutch Diameter: 119mm
No. of Grooves: 8 groove
Belt Type: Serpentine
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 200cc Oil
Fitting Port Position: Horizontal
Fitting Style: Tube-O 1 x 14
Head Type: MD
Replacement Clutch Assy.: NSS
Replacement Head Assy: 03-6534
Model: SD7H15HD
Oil Type: PAG100
Product Name: A/C Compressor w/clutch
Refrigerant Type: R134a
Rotation: CW
Shaft Type: Long Key Shaft
Diode Protection: None
Truck Air Oring 1: 16-4210
Truck Air Seal 1: 16-4210
INTERCHANGE:
58090
8090
See below for related items
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
