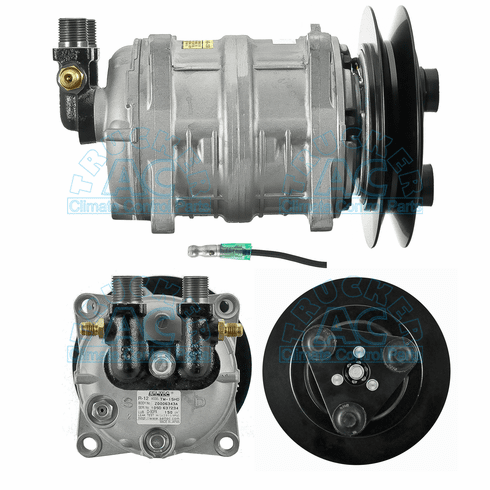

Seltec Compressor OEM# 488-25065
Chevrolet/GMC, 1993 1986 Tiltmaster, Forward, w/Diesel-Kiki (w/VG clutch) w/Kysor A/C, DKS-15, OEM 402723
Freightliner, w/1 gr. 6-1/4" w/ports (R12), OEM# 488-25065
International (Navistar), All w/1 gr. 6-1/4" w/ports (R12) 488-25065, OEM# 169740-C92
Kenworth, w/1 gr. 158mm 6-1/4" w/ports (R12), OEM# 488-25065
Mack, All Models, w/1 gr. 6-1/4" w/ports (R12), OEM# 488-25065
Peterbilt, All Models, w/1 gr. 6-1/4" w/ports (R12), OEM# 488-25065
Volvo GM, 1 gr. 159mm 6-1/4" w/ports (R12), OEM# 488-25065
Western Star, TM15, TM16, 1 gr. 6-1/4" w/ports (R12), OEM# 488-25065
Specifications
Manufacturer #: 488-25035
Application: Multi Fit Applications
Description: A/C Compressor, R12
Volts: 12V
Clutch Diameter: 158mm
No. of Grooves: 1 groove
Belt Type: Variable groove
No. Comp. Cylinders: 6 cyl
Comp. Displacement (ci): 9.0 cu.in.
Factory Oil Charge: 150cc Oil
Fitting Port Position: Vertical
Fitting Style: Pad w/A-style #8-#10 O-ring manifold
Head Type: A
Wire Type: 1 Wire bullet
Replacement Clutch Assy.: 02-3041
Replacement Head Assy: 03-6536F
Model: TM15
Mounting Type: Ear mount
Oil Type: Mineral
Product Name: Compressor
Refrigerant Type: R12
Rotation: CW/CCW
O-Ring #1: 16-4208
O-Ring #2: 16-4210
Shaft Type: Splined shaft
Diode Protection: None
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
INTERCHANGE: 5823 N83-304119 N83304119 525920 1403007 1403011 1691740-C92 18-02803 K318-27-02 K318-27-03 488-22035 488-22065 488-23035 488-23065 488-25035 488-25065 1691740C92 1802803 K3182702 K3182703 48822035 48822065 48823035 48823065 48825035 48825065 85100524
