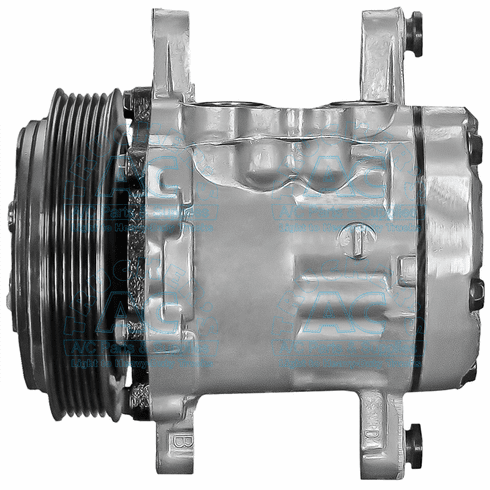

Sanden 7176 SD7B10 w/6GR Clutch

Sanden 7176 SD7B10 w/6GR Clutch

Item# 03-3556
Availability: Usually ships the same business day.


Manufacturer #: 7176

Application: Farm & Off Road Applications

Description: SANDEN SD7B10 COMP W/6GR CL.

Additional Description: Swing Mount Body

Volts: 12V

Clutch Diameter: 112mm

No. of Grooves: 6 groove

Belt Type: Serpentine

No. Comp. Cylinders: 7 cyl

Comp. Displacement (ci): 9.5

Factory Oil Charge: 100cc Oil

Fitting Port Position: Body

Fitting Style: Pad

Head Type: Body Port

Wire Type: 1 Wire Male Bullet

Replacement Clutch Assy.: NSS

Replacement Head Assy: NSS

Model: SD7B10

Mounting Type: SD7B Swing Alternator 2 Top 2 Bottem

Oil Type: PAG100

Product Name: Compressor

Refrigerant Type: R134a

Rotation: CW

O-Ring #1: NSS

O-Ring #2: NSS

Diode Protection: None

All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty

We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.

INTERCHANGE: 57176 7176
