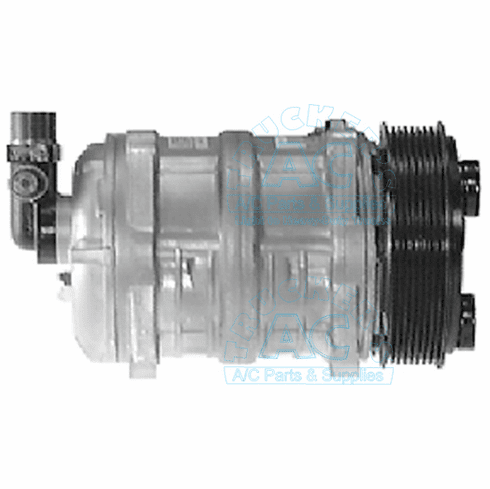

Seltec/Valeo Multi Fit Applications OEM# 48825008 488-25008
Specifications
Manufacturer #: 488-25008
Application: Multi Fit Applications
Description: A/C Compressor, R12
Volts: 12V
Clutch Diameter: 125mm
No. of Grooves: 8 groove
Belt Type: Serpentine
No. Comp. Cylinders: 6 cyl
Comp. Displacement (ci): 9.0 cu.in.
Factory Oil Charge: 150cc Oil
Fitting Port Position: Vertical
Fitting Style: Pad w/D-style #8-#10 O-ring manifold
Head Type: D
Wire Type: 1 Wire bullet
Replacement Clutch Assy.: 02-3058
Replacement Head Assy: 03-6536
Model: TM15
Mount Type: Splined shaft clutch
Mounting Type: Ear mount
Oil Type: Mineral
Product Name: Compressor
Refrigerant Type: R12
Rotation: CW/CCW
O-Ring #1: 16-4208
O-Ring #2: 16-4210
Shaft Type: Splined shaft
Diode Protection: None
Notes: Item No.: 02-3058 Clutch Assy., Item No.: 03-6536 Manifold
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
INTERCHANGE: 5882 501-273A 1403008 488-22051 488-23025 488-23051 488-25008 488-25010 488-25051 488-25118 488-25120 488-25121 488-25154 488-25320 501273A 48822051 48823025 48823051 48825008 48825010 48825051 48825118 48825120 48825121 48825154 48825320
