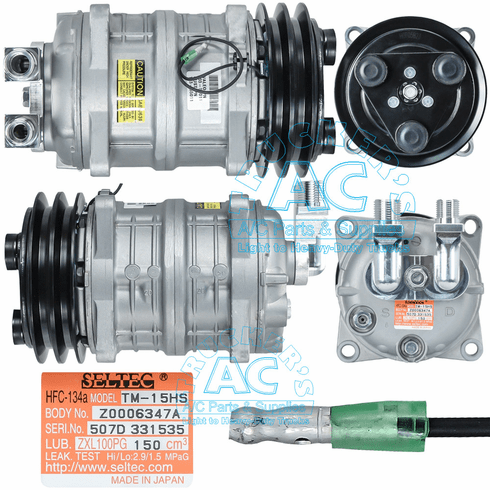

Seltec/Veleo 488-45011 Freightliner
Freightliner
All w/2 gr. 5-1/4" w/o ports, (R134a), 488-45011
International (Navistar) All w/2 gr. 5-1/4" w/o ports, (R134a), 488-45011
Kenworth All w/2 gr. 132mm 5-1/4" w/o ports, (R134a), 488-45011 TM15, All w/2 gr. 132mm, 5-1/4" w/o ports, (R134a), 488-45011
Mack ALL MODELS TM15 w/2 gr. 5-1/4" w/o ports, (R134a), 488-45011
Peterbilt All w/2 gr. 5-1/4" w/o ports, (R134a), 488-45011
Volvo GM TM15, TM16, 2 gr. 132mm 5-1/4" w/o ports, (R134a), 488-45011
Western Star TM15, TM16, 2 gr. 5-1/4" w/o ports, (R134a), 488-45011
Specifications
Manufacturer #: 488-45011
Application: Multi Fit Applications
Description: A/C Compressor, R134a
Volts: 12V
Clutch Diameter: 132mm
No. of Grooves: 2 groove
Belt Type: Two 1/2'' Belts
No. Comp. Cylinders: 6 cyl
Comp. Displacement (ci): 9.0 cu.in.
Factory Oil Charge: 150cc Oil
Fitting Port Position: Vertical
Fitting Style: Pad w/D-style #8-#10 O-ring manifold
Head Type: D
Wire Type: 1 Wire bullet
Replacement Clutch Assy.: 02-3034
Replacement Head Assy: 03-6536
Model: TM15
Mounting Type: Ear mount
Oil Type: PAG46
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW/CCW
O-Ring #1: 16-4208
O-Ring #2: 16-4210
Shaft Type: Splined shaft
Diode Protection: None
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
INTERCHANGE: 2521155 102-838 5711 N83-304025 N83-304069 N83304025 N83304069 525917 LF1040 ZGG705170 2521152 2521339 2521455 1403100 75R-8612 RD5-7145-0 75R8612 RD571450 10055011 10055311 435-55011 435-55018 435-55311 488-43011 488-45011 488-45018 488-45311 43555011 43555018 43555311 48843011 48845011 48845018 48845311 85100539
