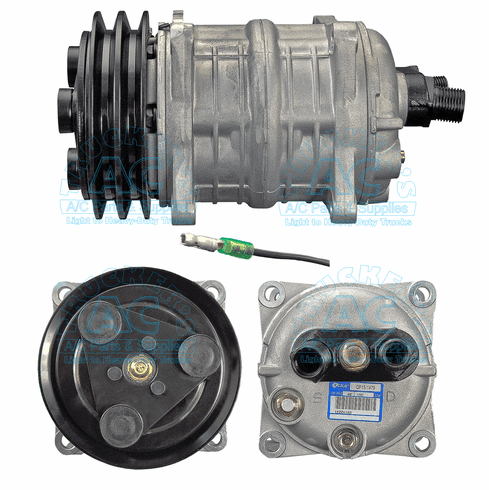

QUE Seltec Multi Fit Applications OEM #: 48845030 488-45030
Specifications
Manufacturer #: 488-45030
Application: Multi Fit Applications
Description: SELTEC COMPRESSOR/R134a
Volts: 12V
Clutch Diameter: 132mm
No. of Grooves: 2 groove
Belt Type: Two 1/2'' Belts
No. Comp. Cylinders: 6 cyl
Comp. Displacement (ci): 9.0 cu.in.
Factory Oil Charge: 150cc Oil
Fitting Port Position: Horizontal
Fitting Style: Pad w/C-style #8-#10 O-ring manifold
Head Type: C
Wire Type: 1 Wire bullet
Replacement Clutch Assy.: 02-3034
Replacement Head Assy: 03-6537
Model: TM15
Mount Type: Splined shaft clutch
Mounting Type: Ear mount
Oil Type: PAG46
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW/CCW
O-Ring #1: 16-4208
O-Ring #2: 16-4210
Shaft Type: Splined shaft
Diode Protection: None
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, bus, RV and van AC parts.
INTERCHANGE: 5760
