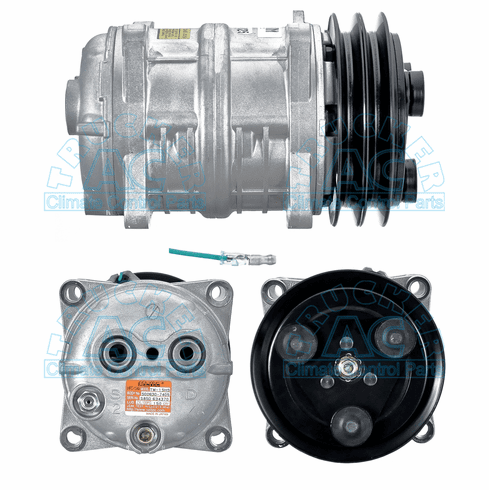

Seltec Compressor OEM# 488-45025 xxx-45025

Specifications

Manufacturer #: 488-45025

Application: Farm & Off Road Applications

Description: TM15 COMP W/24V 2GR CL/TOP P

Volts: 24V

Clutch Diameter: 132mm

No. of Grooves: 2 groove

Belt Type: Two 1/2'' Belts

No. Comp. Cylinders: 6 cyl

Comp. Displacement (ci): 9.0 cu.in.

Factory Oil Charge: 150cc Oil

Fitting Port Position: Top

Fitting Style: Pad

Head Type: Special

Wire Type: 1 Wire bullet

Replacement Clutch Assy.: 02-3047

Replacement Head Assy: NSS

Model: TM15

Mounting Type: Ear mount

Oil Type: PAG46

Product Name: Compressor

Refrigerant Type: R134a

Rotation: CW/CCW

O-Ring #1: 16-4208

O-Ring #2: 16-4210

Shaft Type: Splined shaft

Diode Protection: None

All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty

We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.

INTERCHANGE: 7809 10055025 435-55025 488-45025 43555025 48845025
