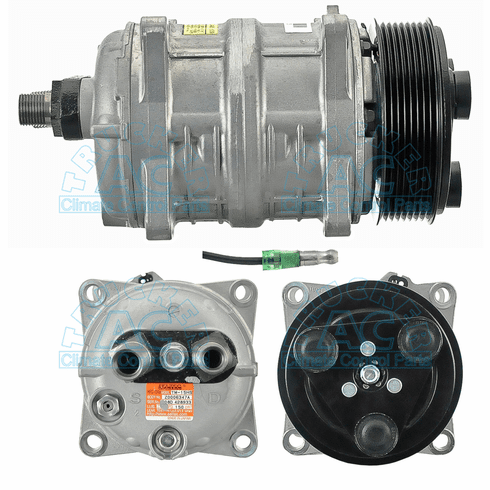

Seltec (R134a) Compressor 488-43052
Seltec (R134a) Compressor xxx-45122
Specifications
Manufacturer #: 488-45122
Application: Multi Fit Applications
Description: A/C Compressor, R134a
Volts: 12V
Clutch Diameter: 125mm
No. of Grooves: 8 groove
Belt Type: Serpentine
No. Comp. Cylinders: 6 cyl
Comp. Displacement (ci): 9.0 cu.in.
Factory Oil Charge: 150cc Oil
Fitting Port Position: Horizontal
Fitting Style: Pad w/C-style #8-#10 O-ring manifold
Head Type: C
Wire Type: 1 Wire bullet
Replacement Clutch Assy.: 02-3058 see note
Replacement Head Assy: 03-6537
Model: TM15
Mounting Type: Ear mount
Oil Type: PAG46
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW/CCW
O-Ring #1: 16-4208
O-Ring #2: 16-4210
Shaft Type: Splined shaft
Diode Protection: None
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
INTERCHANGE: 5783 N83-304539 N83-304629 N83304539 N83304629 ZGG705040 2521266 2521323 2521340 2521548 1403119 1403121 75R-85832 75R-86132 RD5-10429-0 75R85832 75R86132 RD5104290 10055120 10055122 10055128 10055322 10055368 435-55068 435-55120 435-55122 435-55128 435-55322 435-55368 488-43052 488-43068 488-45052 488-45068 488-45122 488-45128 488-45322 488-45368 85100553 43555068 43555120 43555122 43555128 43555322 43555368 48843052 48843068 48845052 48845068 48845122 48845128 48845322 48845368
Specifications
Manufacturer #: 488-45122
Application: Multi Fit Applications
Description: A/C Compressor, R134a
Volts: 12V
Clutch Diameter: 125mm
No. of Grooves: 8 groove
Belt Type: Serpentine
No. Comp. Cylinders: 6 cyl
Comp. Displacement (ci): 9.0 cu.in.
Factory Oil Charge: 150cc Oil
Fitting Port Position: Horizontal
Fitting Style: Pad w/C-style #8-#10 O-ring manifold
Head Type: C
Wire Type: 1 Wire bullet
Replacement Clutch Assy.: 02-3058 see note
Replacement Head Assy: 03-6537
Model: TM15
Mounting Type: Ear mount
Oil Type: PAG46
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW/CCW
O-Ring #1: 16-4208
O-Ring #2: 16-4210
Shaft Type: Splined shaft
Diode Protection: None
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
INTERCHANGE: 5783 N83-304539 N83-304629 N83304539 N83304629 ZGG705040 2521266 2521323 2521340 2521548 1403119 1403121 75R-85832 75R-86132 RD5-10429-0 75R85832 75R86132 RD5104290 10055120 10055122 10055128 10055322 10055368 435-55068 435-55120 435-55122 435-55128 435-55322 435-55368 488-43052 488-43068 488-45052 488-45068 488-45122 488-45128 488-45322 488-45368 85100553 43555068 43555120 43555122 43555128 43555322 43555368 48843052 48843068 48845052 48845068 48845122 48845128 48845322 48845368
