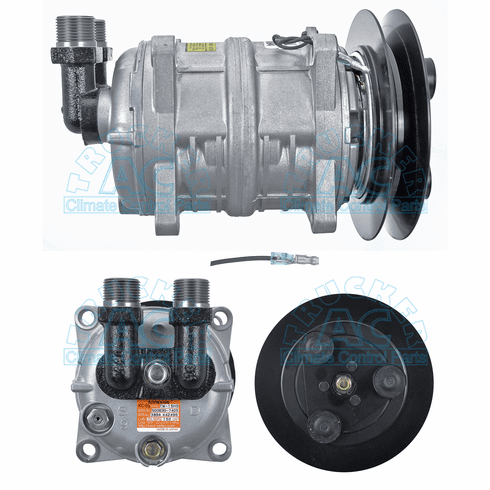

Seltec Compressor OEM# 488-45094 xxx-45094
Specifications
Manufacturer #: 488-45094
Application: Multi Fit Applications
Description: A/C Compressor, R134a
Volts: 12V
Clutch Diameter: 158mm
No. of Grooves: 1 groove
Belt Type: Variable groove
No. Comp. Cylinders: 6 cyl
Comp. Displacement (ci): 9.0 cu.in.
Factory Oil Charge: 150cc Oil
Fitting Port Position: Vertical
Fitting Style: Pad w/E-style Tube-O manifold
Head Type: E
Wire Type: 1 Wire bullet
Replacement Clutch Assy.: 02-3041
Replacement Head Assy: 03-6538
Model: TM15
Mounting Type: Ear mount
Oil Type: PAG46
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW/CCW
O-Ring #1: 16-4210
O-Ring #2: 16-4210
Shaft Type: Splined shaft
Diode Protection: None
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
INTERCHANGE: 5728 N83-304409 N83304409 2521329 75R-85332 435-55094 488-26094 488-43094 488-45094 75R85332 43555094 48826094 48843094 48845094
