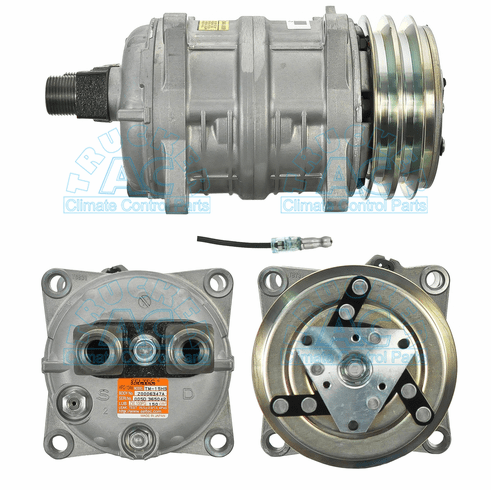

Seltec Compressor OEM# 488-46075 xxx-45075
Specifications
Manufacturer #: 488-46075
Application: Multi Fit Applications
Description: A/C Compressor, R134a
Volts: 12V
Clutch Diameter: 125mm
No. of Grooves: 2 groove
Belt Type: Two 1/2'' Belts
No. Comp. Cylinders: 6 cyl
Comp. Displacement (ci): 9.0 cu.in.
Factory Oil Charge: 150cc Oil
Fitting Port Position: Horizontal
Fitting Style: Pad w/F-style Tube-O manifold
Head Type: F
Wire Type: 1 Wire bullet
Replacement Clutch Assy.: 02-3440
Replacement Head Assy: 03-6539
Model: TM15
Mounting Type: Ear mount
Oil Type: PAG46
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW/CCW
O-Ring #1: 16-4210
O-Ring #2: 16-4210
Shaft Type: Splined shaft
Diode Protection: None
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
INTERCHANGE: 5789 N83-304559 N83304559 525960 525974 22-51920-000 2251920000 2521168 2521350 1403135 75R-85032 75R-86212 RD5-10432-0 RD5-11520-0 435-55075 488-45075 75R85032 75R86212 RD5104320 RD5115200 43555075 48845075 512075 512076 512125 501-270A 501270A 512043 512044 AC501-266A AC501266A
