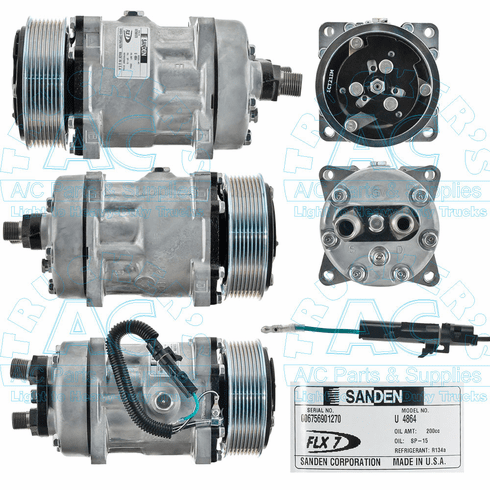

Sanden Compressor - Genuine Model: SD7H15HD - Multi Fit
Make: Sanden
Application: Multi Fit Applications
Description: Sanden Compressor W/MANIFOLD
Volts: 12V
Clutch Diameter: 119mm
No. of Grooves: 8 groove
Belt Type: Serpentine
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 200cc Oil
Fitting Port Position: Horizontal
Fitting Style: Rear Universal O-ring FLX-7 Pad
Head Type: GV w/manifold
Wire Type: 1 Wire Male Packard #12015791 W/ Diode & Bullet Jumper
Replacement Clutch Assy.: 02-0601
Replacement Head Assy: 03-6554
Model: SD7H15HD
Mount Type: Clutch has keyed shaft
Mounting Type: Ear mount
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
Shaft Type: Long Key Shaft
Diode Protection: w/diode
Truck Air Oring 1: 16-4224
Truck Air Seal 1: 16-4224
INTERCHANGE: AIRSOURCE 5282C
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
