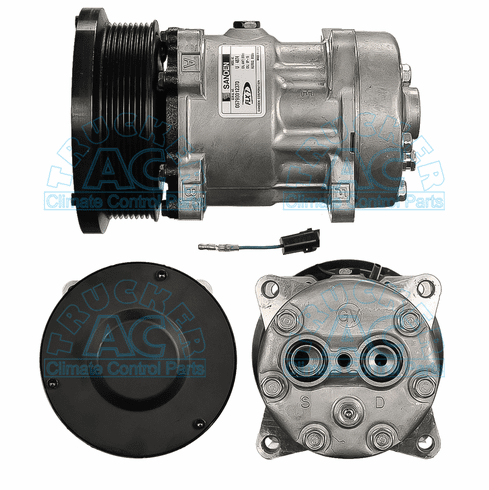

Sanden FLX7 Compressor 4874 5284 N83-304084 Multi Fit Applications
Specifications
Manufacturer #: 4874
Application: Multi Fit Applications
Description: Sanden Flex Comp. R134a, 12v
Additional Description: Sealed HD style
Volts: 12V
Clutch Diameter: 119mm
No. of Grooves: 8 groove
Belt Type: Serpentine
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 200cc Oil
Fitting Port Position: Horizontal
Fitting Style: Rear Universal O-ring FLX-7 Pad
Head Type: GV
Wire Type: 1 Wire Male Packard #12015791 W/ Diode & Bullet Jumper
Replacement Clutch Assy.: 02-3507
Replacement Head Assy: 03-6554
Model: SD7H15-SHD
Mounting Type: Ear 8 Long
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
O-Ring #1: 16-4224
O-Ring #2: 16-4224
Shaft Type: Long Key Shaft
Diode Protection: w/diode
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
INTERCHANGE: 5284 N83-304084 ZGG705154 75R-89434 4874
8026 (03-3708D w/03-6511)
8025 (03-3708D w/03-6512)
6655 (03-3708D w/03-6514)
6675 (03-3708D w/03-6514)
