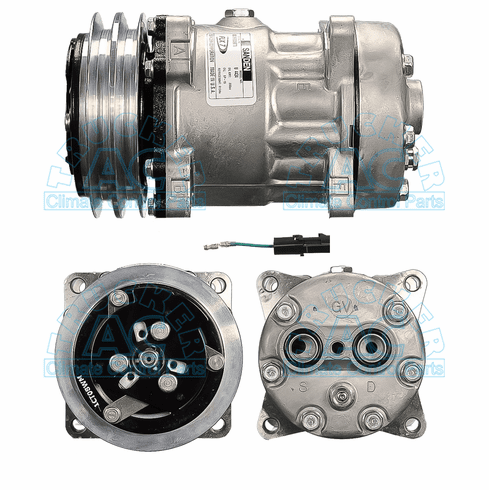

Sanden 4434 FLX7 (R134a)
THIS ITEM HAS BEEN REPLACED by Item #:03-3489A
Click here for the Replacement Part
Sanden FLX7 (R134a) - Compressor #4434 4447
Specifications
Manufacturer #: 4434
Application: Multi Fit Applications
Description: Sanden Flex Comp. R134a, 12v
Volts: 12V
Clutch Diameter: 132mm
No. of Grooves: 2 groove
Belt Type: Two 1/2'' Belts
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 200cc Oil
Fitting Port Position: Horizontal
Fitting Style: Rear Universal O-ring FLX-7 Pad
Head Type: GV
Wire Type: 1 Wire Male Packard #12015791 W/ Diode & Bullet Jumper
Replacement Clutch Assy.: 02-1604
Replacement Head Assy: 03-6554
Model: SD7H15HD
Mounting Type: Ear 8 Long
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
O-Ring #1: 16-4224
O-Ring #2: 16-4224
Shaft Type: Long Key Shaft
Diode Protection: w/diode
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, bus, RV and van AC parts.
INTERCHANGE: 5290 N83-304064 ZGG705181 75R-89422 N83304064 ZGG705181 75R89422 4434 4447 9040 9108 9672 9005 9263 9264 9279
