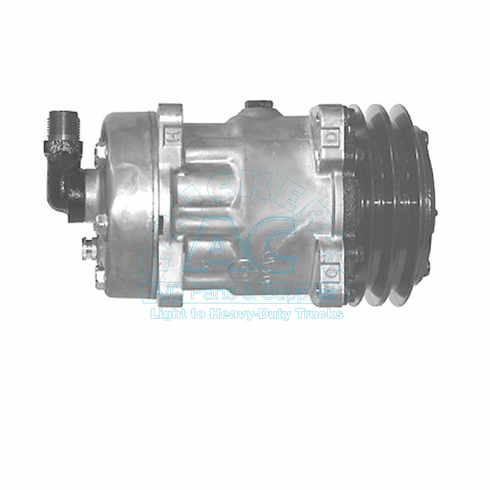

Sanden Compressor - Genuine Manufacturer #: 4457 - Multi Fit
Make: Sanden
Manufacturer #: 4457
Application: Multi Fit Applications
Description: Sanden Flex Compressor with
Volts: 12V
Clutch Diameter: 132mm
No. of Grooves: 2 groove
Belt Type: Two 1/2'' Belts
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 200cc Oil
Fitting Port Position: Horizontal
Fitting Style: Rear Universal O-ring FLX-7 Pad
Head Type: GV
Wire Type: 1 Wire Male Packard #12015791 W/ Diode & Bullet Jumper
Replacement Clutch Assy.: 02-1604
Replacement Head Assy: 03-6554
Model: SD7H15HD-FLX
Mount Type: Clutch has keyed shaft
Mounting Type: Ear 8 Long
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
Shaft Type: Long Key Shaft
Diode Protection: None
Truck Air Oring 1: 16-4224
Truck Air Seal 1: 16-4224
INTERCHANGE: AIRSOURCE 5290A
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
