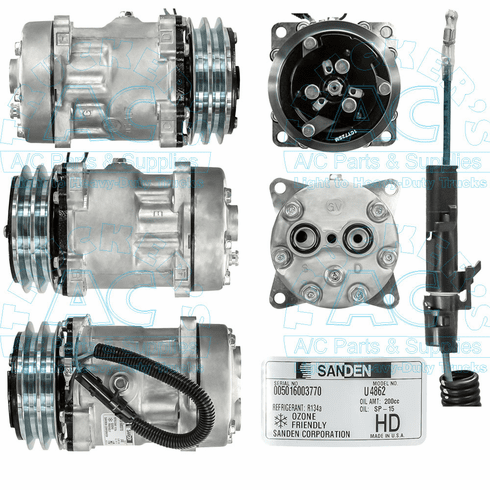

Sanden Compressor - Genuine OEM Grade SD7H15HD-FLX
Make: Sanden
Manufacturer #: 4862
Application: Farm & Off Road Applications
Description: FLX7 SD7H15 COMP.W/125MM 24V
Volts: 24V
Clutch Diameter: 125mm
No. of Grooves: 2 groove
Belt Type: Two 1/2'' Belts
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 200cc Oil
Fitting Port Position: Horizontal
Fitting Style: Rear Universal O-ring FLX-7 Pad
Head Type: GV
Wire Type: 1 Wire Male Packard #12015791 W/ Diode & Bullet Jumper
Replacement Clutch Assy.: 02-3471 see note
Replacement Head Assy: 03-6554
Model: SD7H15HD-FLX
Mounting Type: Ear 8 Long
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
Shaft Type: Long Key Shaft
Notes: * OE Head has PRV, ours does not
Diode Protection: w/diode
Truck Air Oring 1: 16-4224
Truck Air Seal 1: 16-4224
INTERCHANGE: AIRSOURCE 5287; ALLIANCE N83-304582; FLEETRITE ZGG705142; KYSOR 1410048; RED DOT 75R-89334; SANDEN 4449, 4862, 4863, 7824
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
