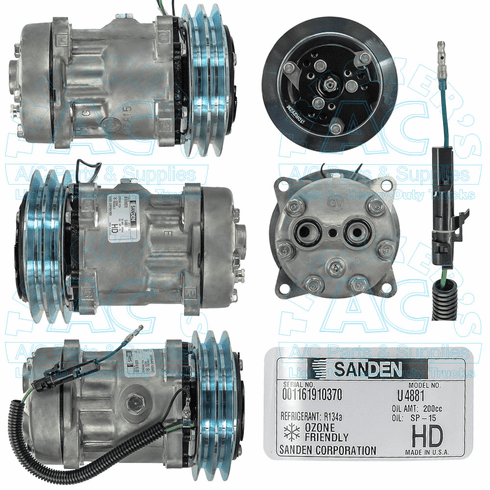

Sanden FLX7 Compressor 4881 Off Road Applications
Make: Sanden
Manufacturer #: 4881
Application: Farm & Off Road Applications
Description: Sanden Flex Comp. R134a, 24v
Additional Description: Sealed HD style
Volts: 24V
Clutch Diameter: 152mm
No. of Grooves: 2 groove
Belt Type: Two 1/2'' Belts
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 200cc Oil
Fitting Port Position: Horizontal
Fitting Style: Rear Universal O-ring FLX-7 Pad
Head Type: GV
Wire Type: 1 Wire Male Packard #12015791 W/ Diode & Bullet Jumper
Replacement Clutch Assy.: 02-3504
Replacement Head Assy: 03-6554
Model: SD7H15HD
Mounting Type: Ear 8 Long
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
Shaft Type: Long Key Shaft
Diode Protection: w/diode
Truck Air Oring 1: 16-4224
Truck Air Seal 1: 16-4224
INTERCHANGE: AIRSOURCE 5294; ALLIANCE N83-304114; FLEETRITE ZGG705161; RED DOT 75R-89484; SANDEN 4532, 4881, 4882, 6679, 8396
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
