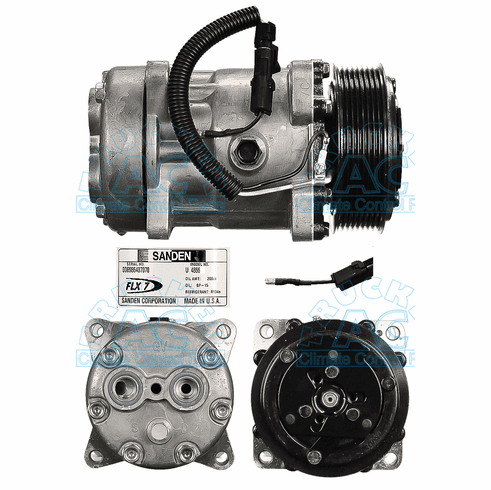

Sanden FLX7 Compressor 4866 4867 Off Road Applications
Specifications
Manufacturer #: 4866
Application: Farm & Off Road Applications
Description: FLX7 SD7H15 COMP.W/24V 8GR C
Volts: 24V
Clutch Diameter: 119mm
No. of Grooves: 8 groove
Belt Type: Serpentine
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 200cc Oil
Fitting Port Position: Horizontal
Fitting Style: Rear Universal O-ring FLX-7 Pad
Head Type: GV
Wire Type: 1 Wire Male Packard #12015791 W/ Diode & Bullet Jumper
Replacement Clutch Assy.: 02-3508
Replacement Head Assy: 03-6554
Model: SD7H15HD-FLX
Mounting Type: Ear 8 Long
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
O-Ring #1: 16-4224
O-Ring #2: 16-4224
Shaft Type: Long Key Shaft
Diode Protection: w/diode
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
INTERCHANGE: 5283 N83-304024 ZGG705146 75R-89354 4866 4867
8086 *03-3718 & 03-6511
8139 *03-3718 & 03-6511
4765 *03-3718 w/03-6512
4763 *03-3718 w/03-6513
4764 *03-3718 w/03-6514
