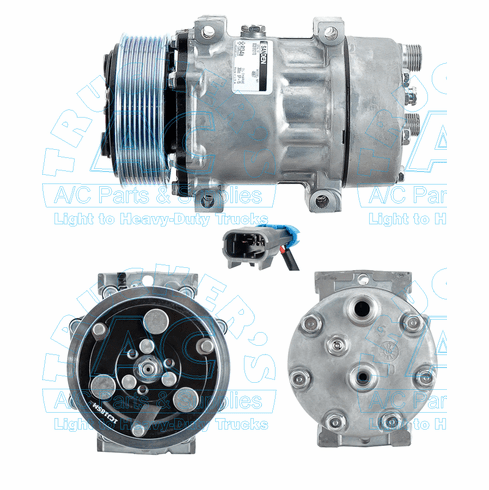

Sanden 4667 w/8GR Clutch OEM# LE1675 4C4Z-19703DA
Specifications
Manufacturer #: 4667
Application: Multi Fit Applications
Description: SANDEN COMPRESSOR W/8GR 2W-D
Volts: 12V
Clutch Diameter: 119mm
No. of Grooves: 8 groove
Belt Type: Serpentine
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 300cc Oil
Fitting Port Position: Horizontal
Fitting Style: Male Insert O-Ring #8 & #10
Head Type: KC
Wire Type: 2 Wire Female Packard #15300002
Replacement Clutch Assy.: 02-0601
Replacement Head Assy: 03-6540C
Model: SD7H15HD
Mounting Type: Direct Long
OEM Number: LE1095
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
O-Ring #1: 16-4208
O-Ring #2: 16-4210
Shaft Type: Long Key Shaft
Diode Protection: w/diode
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
INTERCHANGE: 54667 1410041 LE1085 LE1675 4C4Z-19703DA 4C4Z19703DA K318-103 K318103 4667 1889-RR3-001 1889-RR3001 1889RR3-001 1889RR3001
