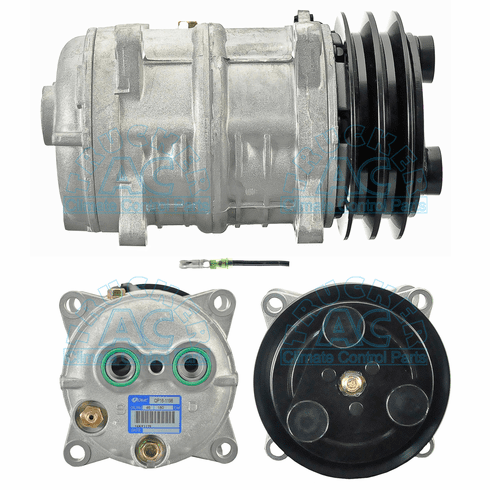

Sanden Universal Compressor 4712 75R-84662
Specifications
Manufacturer #: 4712
Application: Multi Fit Applications
Description: SANDEN SD7H15 COMP.W/8GR/HO
Volts: 12V
Clutch Diameter: 119mm
No. of Grooves: 8 groove
Belt Type: Serpentine
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 135cc Oil
Fitting Port Position: Horizontal
Fitting Style: Male Insert O-Ring #8 & #10
Head Type: KG
Wire Type: 1 Wire Male Bullet
Replacement Clutch Assy.: 02-3468
Replacement Head Assy: 03-6540G
Model: SD7H15HD
Mounting Type: Ear 8 Long
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
O-Ring #1: 16-4208
O-Ring #2: 16-4210
Shaft Type: Long Key Shaft
Diode Protection: None
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
INTERCHANGE: 5762 N83-304304 75R-84662 4712 7864 8027
