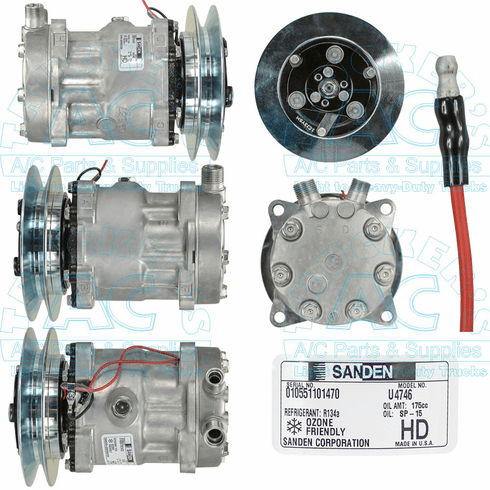

Sanden Compressor - Genuine OEM Grade #: 4746
Make: Sanden
Manufacturer #: 4746
Application: Multi Fit Applications
Description: SANDEN SD7H15 W/12V VG CLUTC
Volts: 12V
Clutch Diameter: 158mm
No. of Grooves: 1 groove
Belt Type: Variable groove
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 175cc Oil
Fitting Port Position: Vertical
Fitting Style: Male Insert O-Ring #8 & #10
Head Type: JD
Wire Type: 1 Wire Male Bullet
Replacement Clutch Assy.: 02-3480
Replacement Head Assy: 03-6533
Model: SD7H15HD
Mounting Type: Ear 8 Long
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
Shaft Type: Long Key Shaft
Diode Protection: None
Truck Air Oring 1: 16-4208
Truck Air Oring 2: 16-4210
Truck Air Seal 1: 16-4208
Truck Air Seal 2: 16-4210
INTERCHANGE: AIRSOURCE 5736; ALLIANCE N83-304132; CLIMATECH LE1210; FLEETRITE ZGG705164; KYSOR 1401138; RED DOT 75R-8372, RD5-7090-0; SANDEN 4515, 4746, 6673, 8114; TRANSAIR 512105
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
