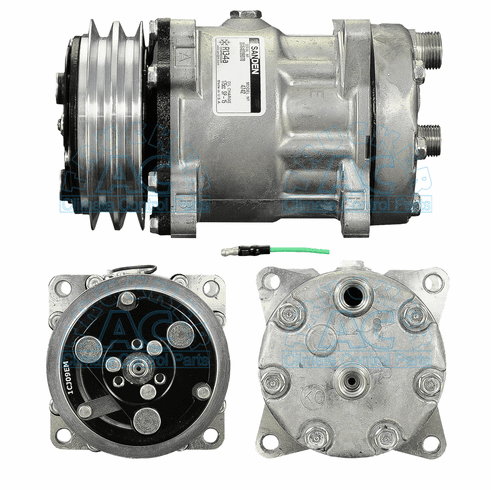

Sanden Compressor # 4742 TAKEUCHI
TAKEUCHI, Compressor w/ 2gr. 125mm 24V, Ear Mount, R134a (Sanden #4742), OEM# 4742
Specifications
Manufacturer #: 4742
Application: Farm & Off Road Applications
Description: SANDEN SD7H15 W/24V 2GR CLUT
Volts: 24V
Clutch Diameter: 125mm
No. of Grooves: 2 groove
Belt Type: Two 1/2'' Belts
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 175cc Oil
Fitting Port Position: Horizontal
Fitting Style: Male Insert O-Ring #8 & #10
Head Type: KG
Wire Type: 1 Wire Male Bullet
Replacement Clutch Assy.: 02-3471
Replacement Head Assy: 03-6540G
Model: SD7H15HD
Mounting Type: Ear 8 Long
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
O-Ring #1: 16-4208
O-Ring #2: 16-4210
Shaft Type: Long Key Shaft
Diode Protection: None
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
INTERCHANGE: 5749 N83-304294 75R-84652 4742
