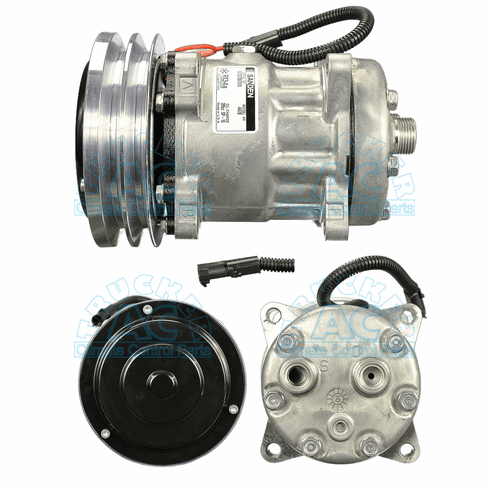

Sanden 4478 CASE/IH 1990755-C3
Sanden Compressor 4609 CASE / IH
All w/2 grv, 152 dia., 12 volt (4609), OEM# 1990755-C3
All w/Sanden #4609, SD7H15SHD w/2 gr 12v, 152mm dia. clutch, OEM# U4609
Sanden #4609, All w/SD7H15SHD w/6" dia. pulley, 12V, OEM# 1990755C3, 86993462
Caterpillar, Sanden # 4478, w/2 grv, 152mm, 12v, MD Head
Specifications
Manufacturer #: 4478
Application: Farm & Off Road Applications
Description: Sanden 7H15SHD Comp 2gr 12v
Additional Description: Sealed HD style
Volts: 12V
Clutch Diameter: 152mm
No. of Grooves: 2 groove
Belt Type: Two 1/2'' Belts
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 285cc Oil
Fitting Port Position: Horizontal
Fitting Style: Tube-O 1 x 14
Head Type: MD
Wire Type: 1 Wire Female Packard #12010996
Replacement Clutch Assy.: 02-3417
Replacement Head Assy: 03-6534
Model: SD7H15-SHD
Mounting Type: Ear 8 Long
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
O-Ring #1: 16-4210
O-Ring #2: 16-4210
Shaft Type: Long Key Shaft
Diode Protection: None
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, bus, RV and van AC parts.
INTERCHANGE: 5300 N83-304992 N83304992 1990755C3 1999755C2 1999755C3 700713317 86993462 8699342 86993462 75R-84112 75R84112 4478 4609
