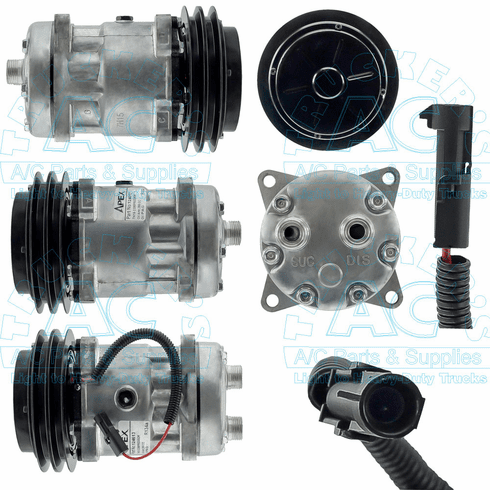

Sanden Style A/C Compressor - #4478 Farm & Offroad
Manufacturer #: 4478
Application: Farm & Off Road Applications
Description: Sanden 7H15SHD Comp 2gr 12v
Additional Description: Sealed HD style
Volts: 12V
Other OE Sanden #: 4609
Clutch Diameter: 152mm
No. of Grooves: 2 groove
Belt Type: Two 1/2'' Belts
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 285cc Oil
Fitting Port Position: Horizontal
Fitting Style: Tube-O 1 x 14
Head Type: MD
Wire Type: 1 Wire Female Packard #12010996
Replacement Clutch Assy.: 02-3517
Replacement Head Assy: 03-6534
Model: SD7H15-SHD
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
Shaft Type: Long Key Shaft
Diode Protection: None
Truck Air Oring 1: 16-4210
Truck Air Seal 1: 16-4210
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
INTERCHANGE: AIRSOURCE #5300G, ALLIANCE #N83-304992, CASE / IH #1990755C3 / 1999755C2 / 1999755C3 / 86993462, FORD NEW HOLLAND #8699342 / 86993462, RED DOT #75R-84112, SANDEN #4478 / 4609
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
