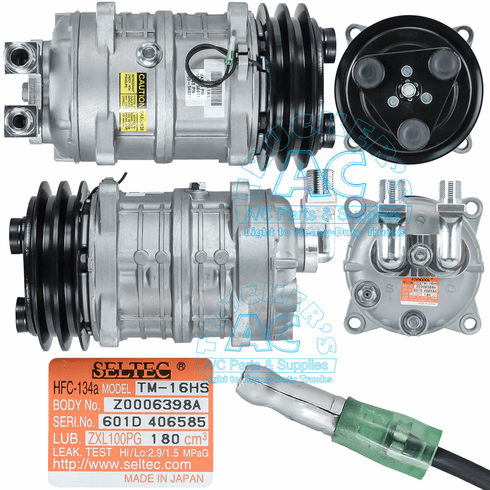

Seltec Compressor 448-46011 SHUTTLE BUSES 502-220A
All w/Zexel/TAMA TM16, 12 volt (w/2 gr. clutch) (#488-46021), OEM# 502-220A
Specifications
Manufacturer #: 488-46011
Application: Multi Fit Applications
Description: A/C Compressor, R134a
Volts: 12V
Clutch Diameter: 132mm
No. of Grooves: 2 groove
Belt Type: Two 1/2'' Belts
No. Comp. Cylinders: 6 cyl
Comp. Displacement (ci): 9.7 cu.in.
Factory Oil Charge: 180cc Oil
Fitting Port Position: Vertical
Fitting Style: Pad w/D-style #8-#10 O-ring manifold
Head Type: D
Wire Type: 1 Wire bullet
Replacement Clutch Assy.: 02-3034
Replacement Head Assy: 03-6536
Model: TM16HD/HS
Mounting Type: Ear mount
Oil Type: PAG46
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW/CCW
O-Ring #1: 16-4208
O-Ring #2: 16-4210
Shaft Type: Splined shaft
Diode Protection: None
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
INTERCHANGE: 5791 N83-304129 18-00093-07 502-220 N83304129 180009307 502220 ZGG705044 2521180 2521467 2521515 1403125 1691737-C1 75R-8712 RD5-9609-7 1691737C1 75R8712 RD596097 10056011 10056091 10056311 435-56011 435-56091 435-56311 488-46011 488-46091 488-46311 43556011 43556091 43556311 48846011 48846091 48846311 85100559
