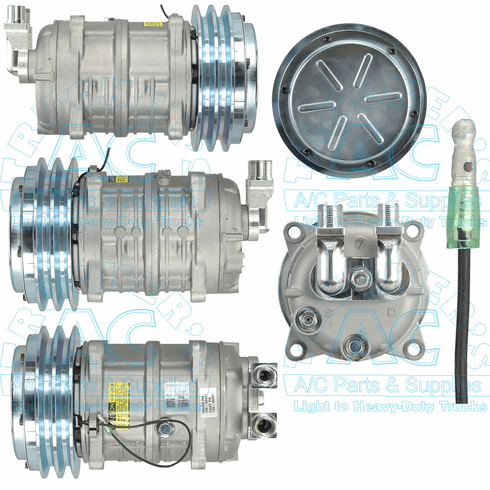

Seltec/Valeo Compressor OEM #: 10355041, 10055041, 488-45041
Make: Seltec - Valeo
Manufacturer: Valeo
Application: Farm & Off Road Applications
Description: Seltec TM16 W/2GR CL. W/DUST
Additional Description: Sealed HD style
Volts: 12V
Clutch Diameter: 152mm
No. of Grooves: 2 groove
Belt Type: Two 1/2'' Belts
No. Comp. Cylinders: 6 cyl
Comp. Displacement (ci): 9.7 cu.in.
Factory Oil Charge: 180cc Oil
Fitting Port Position: Vertical
Fitting Style: Pad w/D-style #8-#10 O-ring manifold
Head Type: G - Univ Pad type
Wire Type: 1 Wire bullet
Replacement Clutch Assy.: NSS
Replacement Head Assy: NSS
Model: TM16HD/HS
Mounting Type: Ear mount
OEM Number: 10355041, 10055041, 488-45041
Oil Type: PAG46
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW/CCW
Shaft Type: Splined shaft
Notes: may be suplied with alum manifold-eff. 2016
Diode Protection: None
Truck Air Oring 1: 16-4208
Truck Air Oring 2: 16-4210
Truck Air Seal 1: 16-4208
Truck Air Seal 2: 16-4210
INTERCHANGE: AIRSOURCE 51607; ICE 2521276, 2521285; SANDEN 8387; SELTEC / VALEO 10055140, 10055321, 10056041, 10356045, 10356404, 435-55041, 435-56041, 435-56045, 435-55140, 488-46041, 488-45140, 488-45041
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
