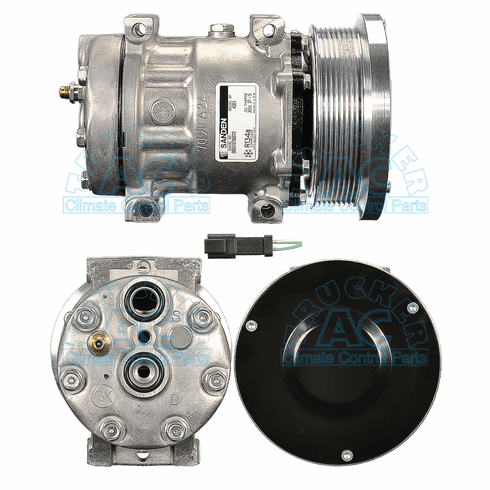

Sanden Compressor # 4769 4301 CATERPILLAR OEM# 163-0872
CATERPILLAR, Sanden w/8 grv, 132mm, 24 v (4769), OEM# 163-0872
Specifications
Manufacturer #: 4301
Application: Farm & Off Road Applications
Description: Sanden 7H15SHD Comp 8gr 24v
Additional Description: Sealed HD style
Volts: 24V
Clutch Diameter: 132mm
No. of Grooves: 8 groove
Belt Type: Serpentine
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 300cc Oil
Fitting Port Position: Horizontal
Fitting Style: Rear Horizontal Pad O-ring
Head Type: GK
Wire Type: 2 Wire Deutsch #DT04-2P-E (005, EP04, EP05)
Replacement Clutch Assy.: 02-3482
Replacement Head Assy: Call
Model: SD7H15-SHD
Mounting Type: Direct Long
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
O-Ring #1: 16-4224
O-Ring #2: 16-4224
Shaft Type: Long Key Shaft
Diode Protection: None
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
INTERCHANGE: 5316 N83-304504 1630872 163-0872 75R-81114 RD5-11235-0 4301 4769
