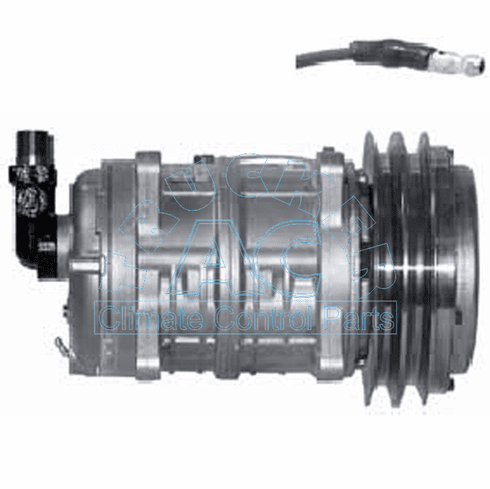

Seltec Compressor OEM# xxx-46100
Specifications
Manufacturer #: 488-46100
Application: Farm & Off Road Applications
Description: TM16 COMP W/24V 2GR CL W/DUS
Volts: 24V
Clutch Diameter: 5.9''
No. of Grooves: 2 groove
Belt Type: Two 1/2'' Belts
No. Comp. Cylinders: 6 cyl
Comp. Displacement (ci): 9.7 cu.in.
Factory Oil Charge: 180cc Oil
Fitting Port Position: Vertical
Fitting Style: Pad w/D-style #8-#10 O-ring manifold
Head Type: D
Wire Type: 1 Wire bullet
Replacement Clutch Assy.: NSS
Replacement Head Assy: 03-6536
Model: TM16HD/HS
Mounting Type: Ear mount
Oil Type: PAG46
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW/CCW
O-Ring #1: 16-4208
O-Ring #2: 16-4210
Shaft Type: Splined shaft
Diode Protection: None
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We stock a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands.
INTERCHANGE: 5414 2521465 2521469 10056100 10056215 435-56100 435-56215 488-46100 488-46215 43556100 43556215 48846100 48846215 2521331 10055100 10055215 435-55100 435-55215 488-45100 488-45215 43555100 43555215 48845100 48845215
