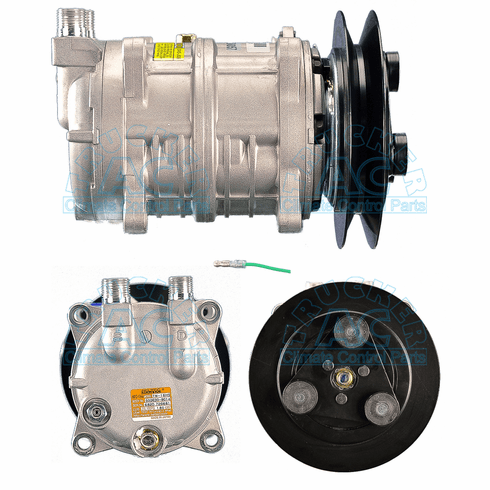

Seltec Compressor OEM# 488-46057
Specifications
Manufacturer #: 488-46057
Application: Farm & Off Road Applications
Description: TAMA TM16HD 24V COMP/488-460
Volts: 24V
Clutch Diameter: 158mm
No. of Grooves: 1 groove
Belt Type: Variable groove
No. Comp. Cylinders: 6 cyl
Comp. Displacement (ci): 9.7 cu.in.
Factory Oil Charge: 180cc Oil
Fitting Port Position: Vertical
Fitting Style: Pad w/D-style #8-#10 O-ring manifold
Head Type: D
Wire Type: 1 Wire bullet
Replacement Clutch Assy.: 02-3053
Replacement Head Assy: 03-6536
Model: TM16HD/HS
Mounting Type: Ear mount
Oil Type: PAG46
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW/CCW
O-Ring #1: 16-4208
O-Ring #2: 16-4210
Shaft Type: Splined shaft
Diode Protection: None
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We stock a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands.
INTERCHANGE: 2521190 10056057 10056061 435-56057 435-56061 488-46057 43556057 43556061 48846057 512131
