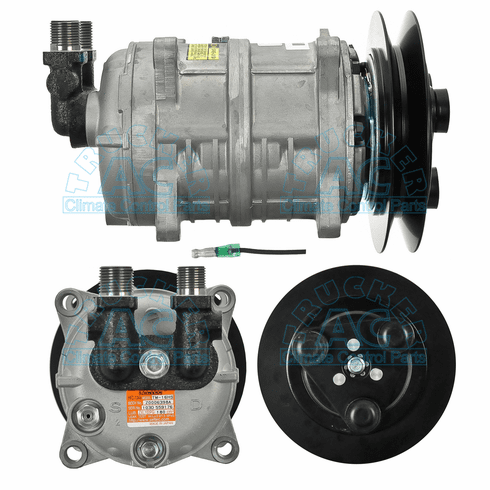

Seltec Compressor OEM# 488-45065 488-45035 Volvo GM

Volvo GM, 1 gr. 159mm 6-1/4", w/o ports, (R134a), OEM# 488-45065

Specifications

Manufacturer #: 488-46035

Application: Multi Fit Applications

Description: A/C Compressor, R134a

Volts: 12V

Clutch Diameter: 158mm

No. of Grooves: 1 groove

Belt Type: Variable groove

No. Comp. Cylinders: 6 cyl

Comp. Displacement (ci): 9.7 cu.in.

Factory Oil Charge: 180cc Oil

Fitting Port Position: Vertical

Fitting Style: Pad w/D-style #8-#10 O-ring manifold

Head Type: D

Wire Type: 1 Wire bullet

Replacement Clutch Assy.: 02-3041

Replacement Head Assy: 03-6536

Model: TM16HD/HS

Mounting Type: Ear mount

Oil Type: PAG46

Product Name: Compressor

Refrigerant Type: R134a

Rotation: CW/CCW

O-Ring #1: 16-4208

O-Ring #2: 16-4210

Shaft Type: Splined shaft

Diode Protection: None

All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty

We stock a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands.

INTERCHANGE: 5795 2521193 2521250 10056035 10056065 435-56035 435-56065 488-46035 488-46065 43556035 43556065 48846035 48846065 2521278 435-55050 488-45050 43555050 48845050
