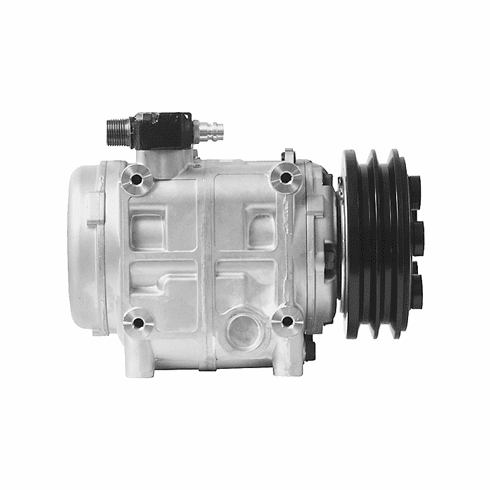

TM31 QCC Compressor OEM #: 10046500 Aftermarket Valeo - Bus
SHUTTLE BUSES & VANS, w/Zexel/Diesel-Kiki DKS26, 12 volt, (w/2 gr. clutch) (#488-23060), OEM# 501-218
SHUTTLE BUSES & VANS, 12 volt w/2 gr. Clutch #488-26060, #488-46500, OEM# 501-277A
ALL EQUIPMENT CLASS VEHICLES, Farm & Off-Road, TM31, 2 Gr, 152mm dia. ,1/2" belt width, 12v, OEM# 488-46500
Make: Seltec - Valeo
Manufacturer: Aftermarket Valeo
Application: Bus Applications
Description: Seltec TM31 comp. w/2Agr,12V
Volts: 12V
Clutch Diameter: 140mm
No. of Grooves: 2 groove
Belt Type: Two 1/2'' Belts
No. Comp. Cylinders: 10 cyl
Comp. Displacement (ci): 15.6 cu.in.
Factory Oil Charge: 500cc Oil
Fitting Port Position: Top
Fitting Style: Male Insert O-Ring #10 & #12
Head Type: TM31
Wire Type: 1 Wire bullet
Replacement Clutch Assy.: 02-3432
Replacement Head Assy: NSS
Model: TM31
Mounting Type: Direct mount
Oil Type: PAG46
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
Shaft Type: Splined shaft
Site_Glass Location: Repl. PNO 50031 (set 2)
Diode Protection: None
Truck Air Oring 1: 16-4208
Truck Air Oring 2: 16-4210
Truck Air Seal 1: 16-4208
Truck Air Seal 2: 16-4210
INTERCHANGE: RD5-8035-1 RD580351 5896 N83-304609 17-31244-00 173124400 2521209 1403143 75R-8652 RD5-8766-0 75R8652 RD587660 10046500 488-22060 488-23060 488-26060 488-43060 488-45060 488-46060 488-46500 48822060 48823060 48826060 48843060 48845060 48846060 48846500
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
