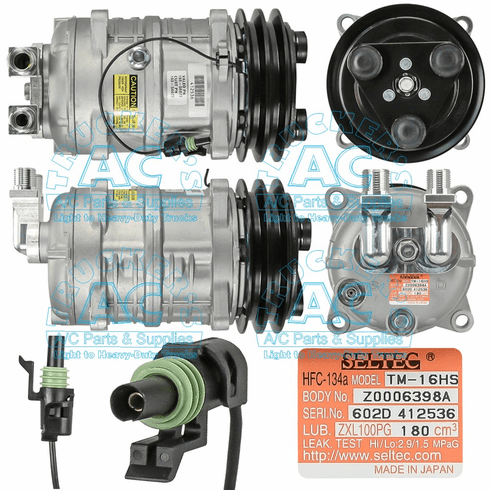

Seltec Compressor OEM# 488-46077 488-46078

Seltec Compressor OEM# 488-46077 488-46078

Item# 03-3759
Availability: Usually ships the same business day.


Make: Seltec - Valeo
Manufacturer: Valeo
Manufacturer #: 10356078
Application: Multi Fit Applications
Description: Seltec Comp 2 gr 135mm 12V
Volts: 12V
Clutch Diameter: 132mm
No. of Grooves: 2 groove
Belt Type: Two 1/2'' Belts
No. Comp. Cylinders: 6 cyl
Comp. Displacement (ci): 9.7
Factory Oil Charge: 180cc Oil
Fitting Port Position: Vertical
Fitting Style: Pad w/D-style #8-#10 O-ring manifold
Head Type: G - Univ Pad type
Wire Type: 1 Wire Weatherpack
Replacement Clutch Assy.: 02-3034
Replacement Head Assy: NSS
Model: TM16HD/HS
Oil Type: PAG46
Product Name: A/C Compressor w/clutch
Refrigerant Type: R134a
Rotation: CW/CCW
Shaft Type: Splined shaft
Notes: may be suplied with alum manifold-eff. 2016
Diode Protection: w/diode
Truck Air Oring 1: 16-4208
Truck Air Oring 2: 16-4210
Truck Air Seal 1: 16-4208
Truck Air Seal 2: 16-4210


ICE: 2521349, 2521472
SELTEC/VALEO: 10356078, 10056078, 10056069, 10056077, 435-56069, 435-56077, 488-46069, 488-46077

All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty

We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
