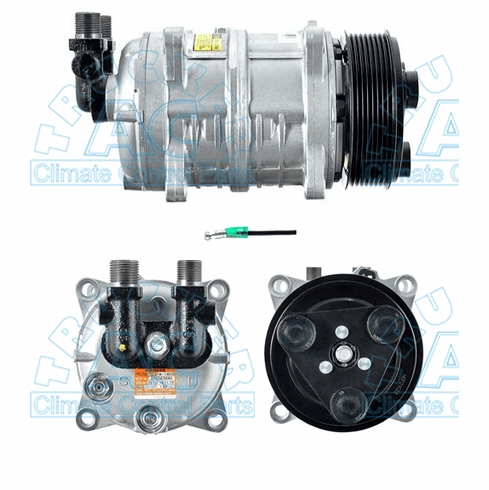

Seltec Valeo 488-46051 SHUTTLE BUSES 502-210A
Seltec Compressor #488-46051 SHUTTLE BUSES & VANS
All w/Zexel/TAMA TM16, 12 volt (w/7 gr. clutch) (#488-46051), OEM# 502-210A, (03-3764 replaced by 8 groove clutch comp. assy.)
All w/Zexel/TAMA TM16, w/2 Groove Clutch 488-46120, OEM# 502-210A
Specifications
Manufacturer #: 488-46051
Application: Multi Fit Applications
Description: Seltec Compressor w/Man. 8gr
Volts: 12V
Clutch Diameter: 125mm
No. of Grooves: 8 groove
Belt Type: Serpentine
No. Comp. Cylinders: 6 cyl
Comp. Displacement (ci): 9.7 cu.in.
Factory Oil Charge: 180cc Oil
Fitting Port Position: Vertical
Fitting Style: Pad w/D-style #8-#10 O-ring manifold
Head Type: D
Wire Type: 1 Wire bullet
Replacement Clutch Assy.: 02-3058
Replacement Head Assy: 03-6536
Model: TM16HD/HS
Mounting Type: Ear mount
Oil Type: PAG46
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW/CCW
O-Ring #1: 16-4208
O-Ring #2: 16-4210
Shaft Type: Splined shaft
Diode Protection: None
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
INTERCHANGE: 5805D 525976 18-00093-05 501-276A 502-210 502-210A 180009305 501276A 502210 502210A ZGG705050 2521195 1403137 75R-8702 75R8702 10056047 10056120 435-56047 435-56120 488-46047 488-46051 488-46120 43556047 43556120 48846047 48846051 48846120 512129 85100567 N83-304439 N83304439 ZGG705035 ZGG705039 2521171 2521317 2521332 75R-85712 75R-86092 RD5-10431-0 75R86092 RD5104310 10055347 435-55047 435-55347 488-43024 488-45024 488-45026 488-45047 488-45120 488-45124 488-45347 102-870 43555047 43555347 48843024 48845024 48845026 48845047 48845120 48845124 48845347 102870
All w/Zexel/TAMA TM16, 12 volt (w/7 gr. clutch) (#488-46051), OEM# 502-210A, (03-3764 replaced by 8 groove clutch comp. assy.)
All w/Zexel/TAMA TM16, w/2 Groove Clutch 488-46120, OEM# 502-210A
Specifications
Manufacturer #: 488-46051
Application: Multi Fit Applications
Description: Seltec Compressor w/Man. 8gr
Volts: 12V
Clutch Diameter: 125mm
No. of Grooves: 8 groove
Belt Type: Serpentine
No. Comp. Cylinders: 6 cyl
Comp. Displacement (ci): 9.7 cu.in.
Factory Oil Charge: 180cc Oil
Fitting Port Position: Vertical
Fitting Style: Pad w/D-style #8-#10 O-ring manifold
Head Type: D
Wire Type: 1 Wire bullet
Replacement Clutch Assy.: 02-3058
Replacement Head Assy: 03-6536
Model: TM16HD/HS
Mounting Type: Ear mount
Oil Type: PAG46
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW/CCW
O-Ring #1: 16-4208
O-Ring #2: 16-4210
Shaft Type: Splined shaft
Diode Protection: None
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
INTERCHANGE: 5805D 525976 18-00093-05 501-276A 502-210 502-210A 180009305 501276A 502210 502210A ZGG705050 2521195 1403137 75R-8702 75R8702 10056047 10056120 435-56047 435-56120 488-46047 488-46051 488-46120 43556047 43556120 48846047 48846051 48846120 512129 85100567 N83-304439 N83304439 ZGG705035 ZGG705039 2521171 2521317 2521332 75R-85712 75R-86092 RD5-10431-0 75R86092 RD5104310 10055347 435-55047 435-55347 488-43024 488-45024 488-45026 488-45047 488-45120 488-45124 488-45347 102-870 43555047 43555347 48843024 48845024 48845026 48845047 48845120 48845124 48845347 102870
