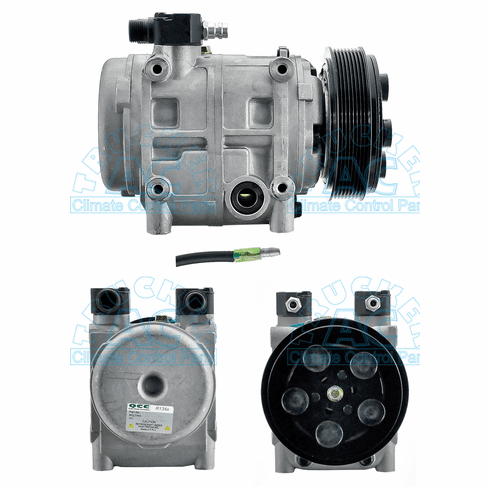

Seltec Compressor 10046550 OEM# 488-46550 17-31249
SHUTTLE BUSES & VANS, Zexel/TAMA-ICE TM 31HD, 24 volt w/8 gr. Clutch OEM# 488-46550, 17-31249
Farm & Off-Road, ALL EQUIPMENT CLASS VEHICLES, SELTEC / VALEO, TM31, 8 Gr, 152mm dia. 24v, OEM# 488-46550
Specifications
Manufacturer #: 10046550
Application: Bus Applications
Description: Seltec TM31 comp. w/8 gr 24v
Volts: 24V
Clutch Diameter: 140mm
No. of Grooves: 8 groove
Belt Type: Serpentine
No. Comp. Cylinders: 10 cyl
Comp. Displacement (ci): 15.6 cu.in.
Factory Oil Charge: 500cc Oil
Fitting Port Position: Top
Fitting Style: Male Insert O-Ring #10 & #12
Head Type: TM31
Wire Type: 1 Wire bullet
Replacement Clutch Assy.: 02-3451
Replacement Head Assy: NSS
Model: TM31
Mounting Type: Direct mount
Oil Type: PAG46
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
O-Ring #1: 16-4208
O-Ring #2: 16-4210
Shaft Type: Splined shaft
Site_Glass Location: Repl. PNO 50031 (set 2)
Diode Protection: None
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
INTERCHANGE: 5901 17-31249-00 173124900 2521214 10046550 488-46550 48846550
