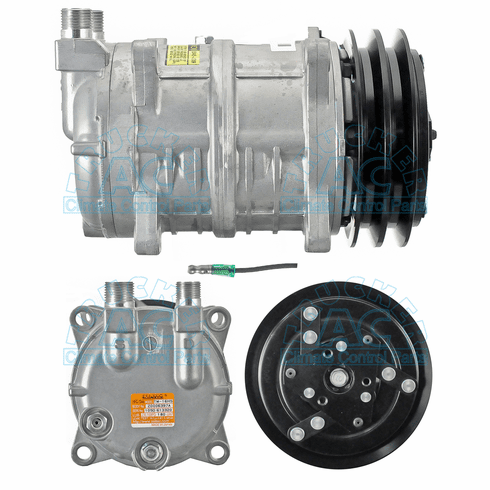

Seltec Compressor OEM# 488-46321
SHUTTLE BUSES & VANS, All w/Zexel/TAMA TM16, w/8 Groove Clutch, OEM# 488-46321
Specifications
Manufacturer #: 10056321
Application: Multi Fit Applications
Description: TM16HD COMP W/2GR
Volts: 12V
Clutch Diameter: 5.3''
No. of Grooves: 2 groove
Belt Type: Two 1/2'' Belts
No. Comp. Cylinders: 6 cyl
Comp. Displacement (ci): 9.7 cu.in.
Factory Oil Charge: 180cc Oil
Fitting Port Position: Vertical
Fitting Style: Male Insert O-Ring #8 & #10
Head Type: B
Wire Type: 1 Wire bullet
Replacement Clutch Assy.: 02-3044
Replacement Head Assy: 03-6507A
Model: TM16HD/HS
Mounting Type: Ear mount
Oil Type: PAG46
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW/CCW
O-Ring #1: 16-4208
O-Ring #2: 16-4210
Shaft Type: Splined shaft
Diode Protection: None
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
INTERCHANGE: 5813 ZGG705055 2521359 10056321 435-56321 488-46321 43556321 48846321
