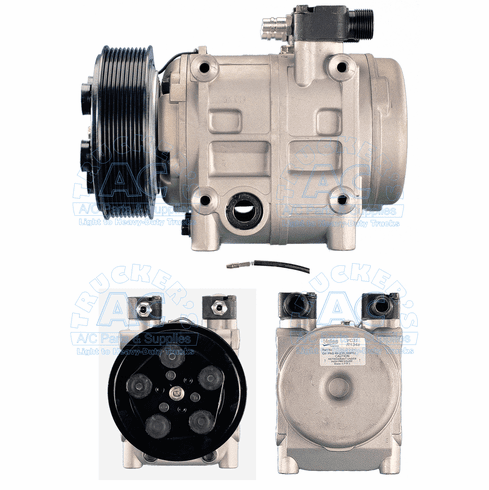

Seltec/Valeo Bus Apps OEM# 100-46560 1411011 QP31-1702
Specifications
Manufacturer #: 10046560
Application: Bus Applications
Description: TM31 COMP W/12V 10GR CLutch
Volts: 12V
Clutch Diameter: 140mm
No. of Grooves: 10 groove
Belt Type: Serpentine
No. Comp. Cylinders: 10 cyl
Comp. Displacement (ci): 15.6 cu.in.
Factory Oil Charge: 500cc Oil
Fitting Port Position: Top
Fitting Style: Male Insert O-Ring #10 & #12
Head Type: TM31
Wire Type: 1 Wire bullet
Replacement Clutch Assy.: 02-3450
Replacement Head Assy: NSS
Model: TM31
Mounting Type: Direct mount
Oil Type: PAG46
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
O-Ring #1: 16-4208
O-Ring #2: 16-4210
Shaft Type: Splined shaft
Site_Glass Location: Repl. PNO 50031 (set 2)
Diode Protection: None
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, bus, RV and van AC parts.
INTERCHANGE: 5910 1411011 QP31-1702 10046560 100-46560
