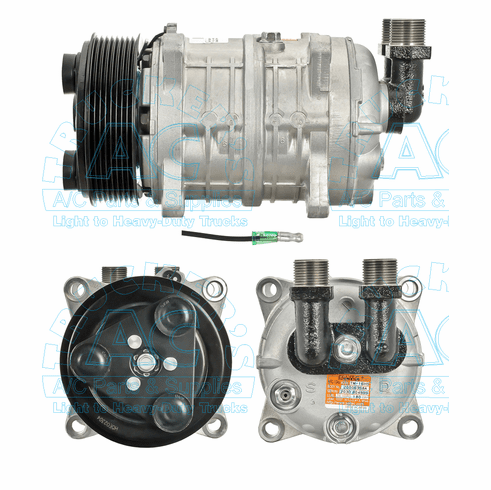

Seltec Compressor OEM# 501-260B 488-46024

SHUTTLE BUSES & VANS, All w/Zexel/TAMA TM16, 12 volt (w/8 gr. clutch) (#488-46120), OEM# 501-260B, (03-3776 replaces 7 groove clutch comp. assy.)

SHUTTLE BUSES & VANS, All w/Zexel/TAMA TM16, 12 volt (w/8 gr. clutch) (#488-46024), OEM# 501-260B , (03-3776 replaces 7 groove clutch comp. assy.)

Specifications

Manufacturer #: 488-46234

Application: Multi Fit Applications

Description: A/C Compressor, R134a

Volts: 12V

Clutch Diameter: 125mm

No. of Grooves: 8 groove

Belt Type: Serpentine

No. Comp. Cylinders: 6 cyl

Comp. Displacement (ci): 9.7 cu.in.

Factory Oil Charge: 180cc Oil

Fitting Port Position: Horizontal

Fitting Style: Universal O-ring Pad

Head Type: G

Wire Type: 1 Wire bullet

Replacement Clutch Assy.: 02-3058

Replacement Head Assy: NSS

Model: TM16HD/HS

Mounting Type: Ear mount

Oil Type: PAG46

Product Name: Compressor

Refrigerant Type: R134a

Rotation: CW/CCW

O-Ring #1: 16-4144

O-Ring #2: 16-4144

Shaft Type: Splined shaft

Diode Protection: None

All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty

INTERCHANGE: 2521345 2521353 1403128 10056026 10056124 435-56026 435-56124 488-46024 488-46026 488-46124 43556026 43556124 48846024 48846026 48846124 85100562
