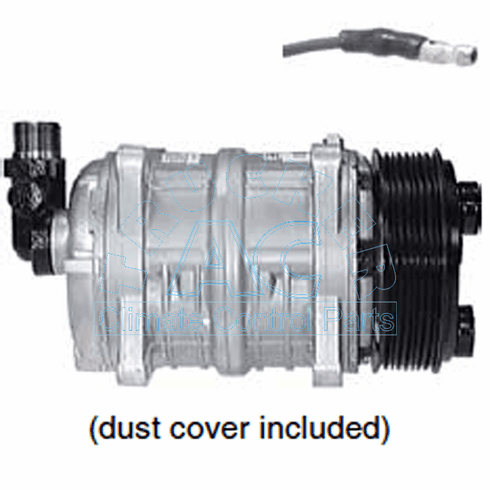

Seltec Compressor OEM# xxx-46038
Specifications
Manufacturer #: 488-46038
Application: Multi Fit Applications
Description: SELTEC TM16 W/8GR CL. W/DUST
Additional Description: Sealed HD style
Volts: 12V
Clutch Diameter: 132mm
No. of Grooves: 8 groove
Belt Type: Serpentine
No. Comp. Cylinders: 6 cyl
Comp. Displacement (ci): 9.7 cu.in.
Factory Oil Charge: 180cc Oil
Fitting Port Position: Vertical
Fitting Style: Pad w/E-style Tube-O manifold
Head Type: E
Wire Type: 1 Wire bullet
Replacement Clutch Assy.: NSS
Replacement Head Assy: 03-6538
Model: TM16HD/HS
Mounting Type: Ear mount
Oil Type: PAG46
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW/CCW
O-Ring #1: 16-4210
O-Ring #2: 16-4210
Shaft Type: Splined shaft
Diode Protection: None
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
INTERCHANGE: 2521275 10055202 10356202 435-55038 435-55202 488-45038 488-45202 43555038 43555202 48845038 48845202 2521284 2521468 10056038 10056202 435-56038 435-56202 488-46038 488-46202 43556038 43556202 48846038 48846202
