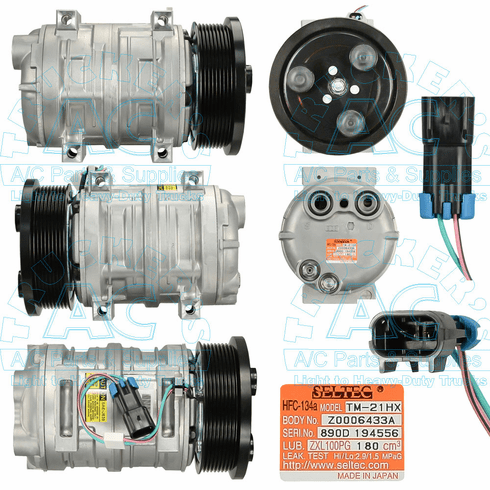

Seltec/Valeo Compressor OEM #: 10356048, 10056048, 488-46048
Make: Seltec - Valeo
Manufacturer: Valeo
Application: Bus Applications
Description: TM21 w/8GR 125MM 24V 2W-D
Volts: 24V
Clutch Diameter: 125mm
No. of Grooves: 8 groove
Belt Type: Serpentine
No. Comp. Cylinders: 10 cyl
Comp. Displacement (ci): 13.1 cu.in.
Factory Oil Charge: 180cc Oil
Fitting Port Position: Horizontal
Fitting Style: Universal O-ring Pad
Head Type: G - Univ Pad type
Wire Type: 2 Wire Metripack
Replacement Clutch Assy.: NSS
Replacement Head Assy: NSS
Model: TM16HD/HS
Mounting Type: Direct mount
OEM Number: 10356048, 10056048, 488-46048
Oil Type: PAG46
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW/CCW
Shaft Type: Splined shaft
Diode Protection: None
Truck Air Oring 1: 16-4144
Truck Air Seal 1: 16-4144
INTERCHANGE: AIRSOURCE 51612; SELTEC/VALEO 10357394
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
