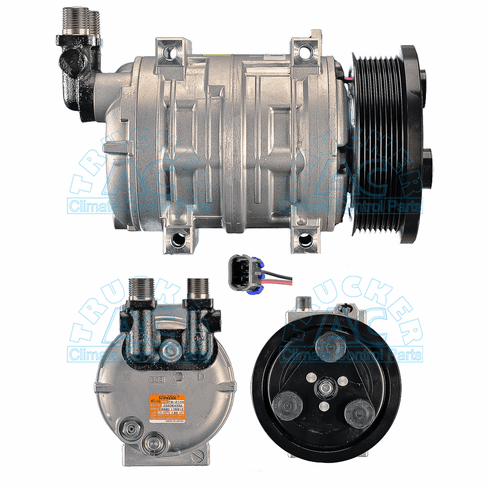

Seltec Compressor 10367275 OEM# 488-67275
Specifications
Manufacturer #: 10367275
Application: Bus Applications
Description: TM21 w/8GR 127MM 12V 2W
Volts: 12V
Clutch Diameter: 127mm
No. of Grooves: 8 groove
Belt Type: Serpentine
No. Comp. Cylinders: 10 cyl
Comp. Displacement (ci): 13.1 cu.in.
Factory Oil Charge: 180cc Oil
Fitting Port Position: Vertical
Fitting Style: Pad w/D-style #8-#10 O-ring manifold
Head Type: TM21
Wire Type: 2 Wire Metripack
Replacement Clutch Assy.: NSS
Replacement Head Assy: NSS
Model: TM16HD/HS
Mounting Type: Direct mount
Oil Type: PAG46
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW/CCW
O-Ring #1: 16-4208
O-Ring #2: 16-4210
Shaft Type: Splined shaft
Diode Protection: None
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
INTERCHANGE: 10367275 103-67275
